PBW4-1Precision belt weigher · four load cell, single idler
A fully floating weigh frame on four load cells with a single weigh idler: ±0.25% of actual weight at belt speeds up to 1.0 m/s*, rated to 3.5 m/s, for belts from 450 to 2,200 mm. Australian designed and made, in galvanised mild steel or stainless.
Or call 1300 101 666
Shown: PBW4-1 weighing aggregate on a 1200 mm belt (3D render from our CAD).
of actual weight, at belt speeds up to 1.0 m/s*

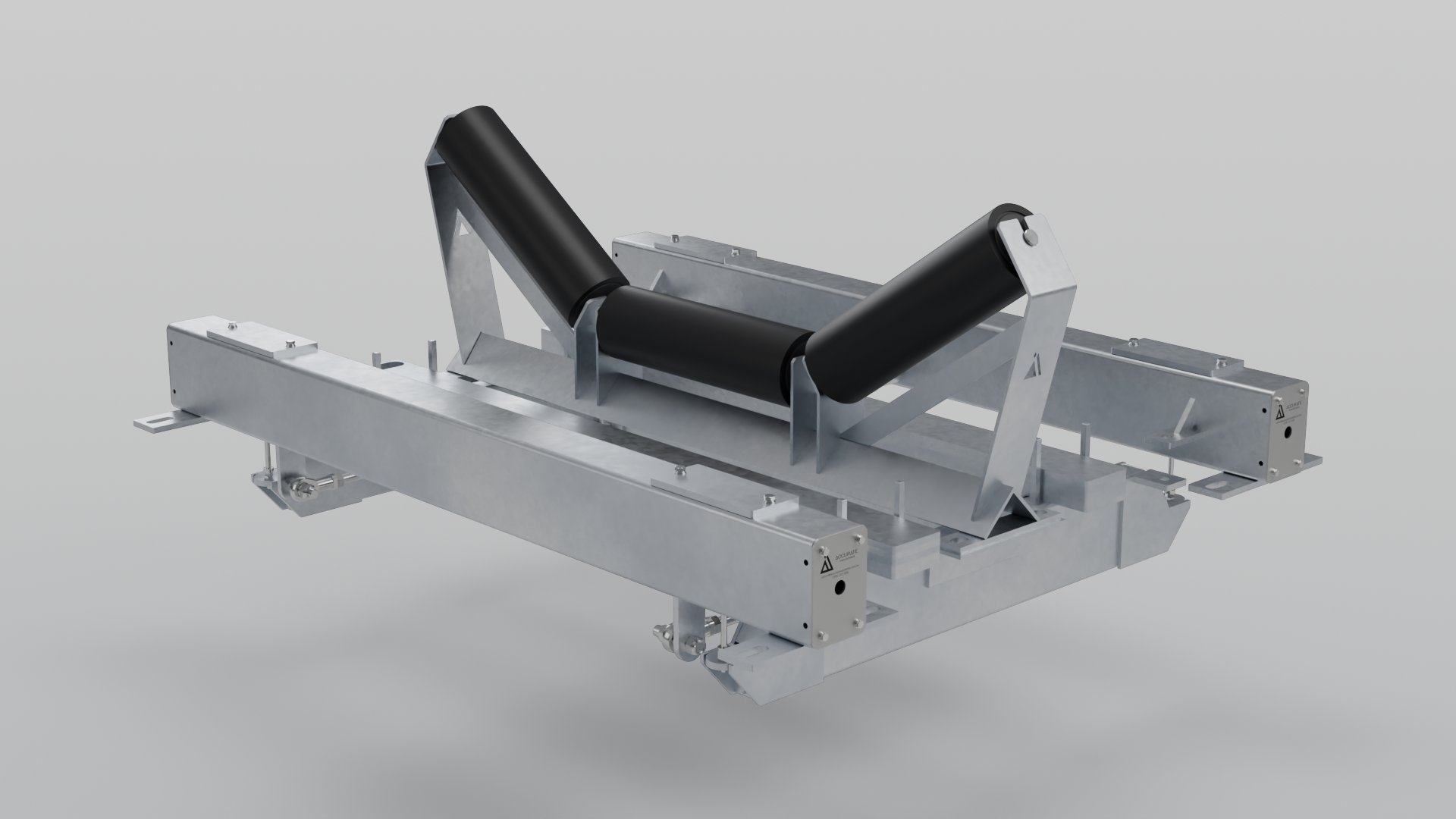

The PBW4-1 weigh frame
Four load cells under a fully floating frame, one weigh idler on top: the PBW4-1 is the entry point to the PBW4 precision series, for belts that run at up to 1.0 m/s where ±0.25% of actual weight is needed. Shown here in hot-dip galvanised mild steel, as supplied for a 1200 mm belt; stainless steel when needed.
From bare frame to running conveyor
Every part of a PBW4-1 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idler, speed sensor and off-scale idlers, plus the integrator and calibration.
1. The weigh frame
The galvanised weigh frame with its four load cells (shown with optional plate calibration weights).

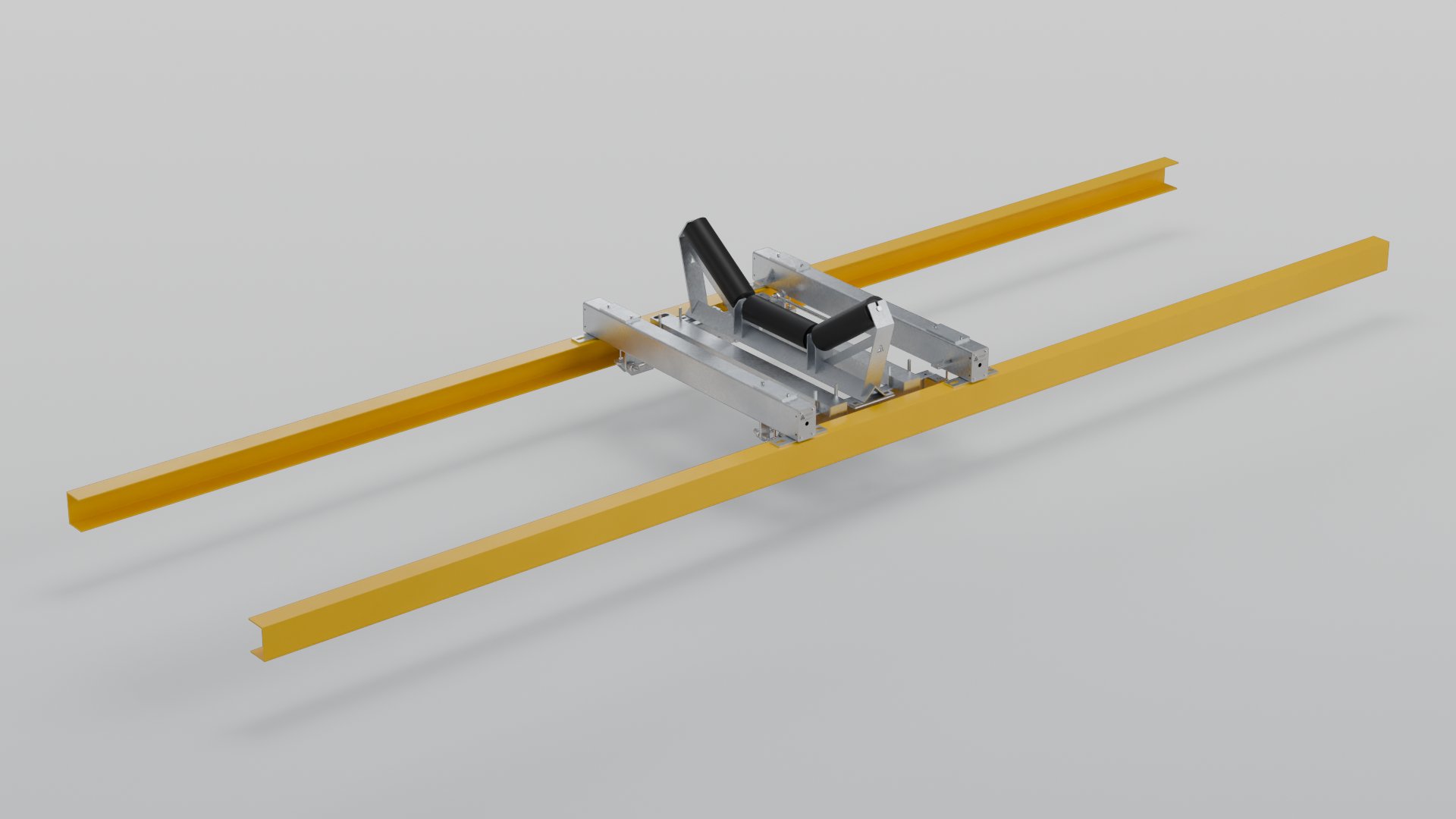

2. Weigh idler, on the stringers

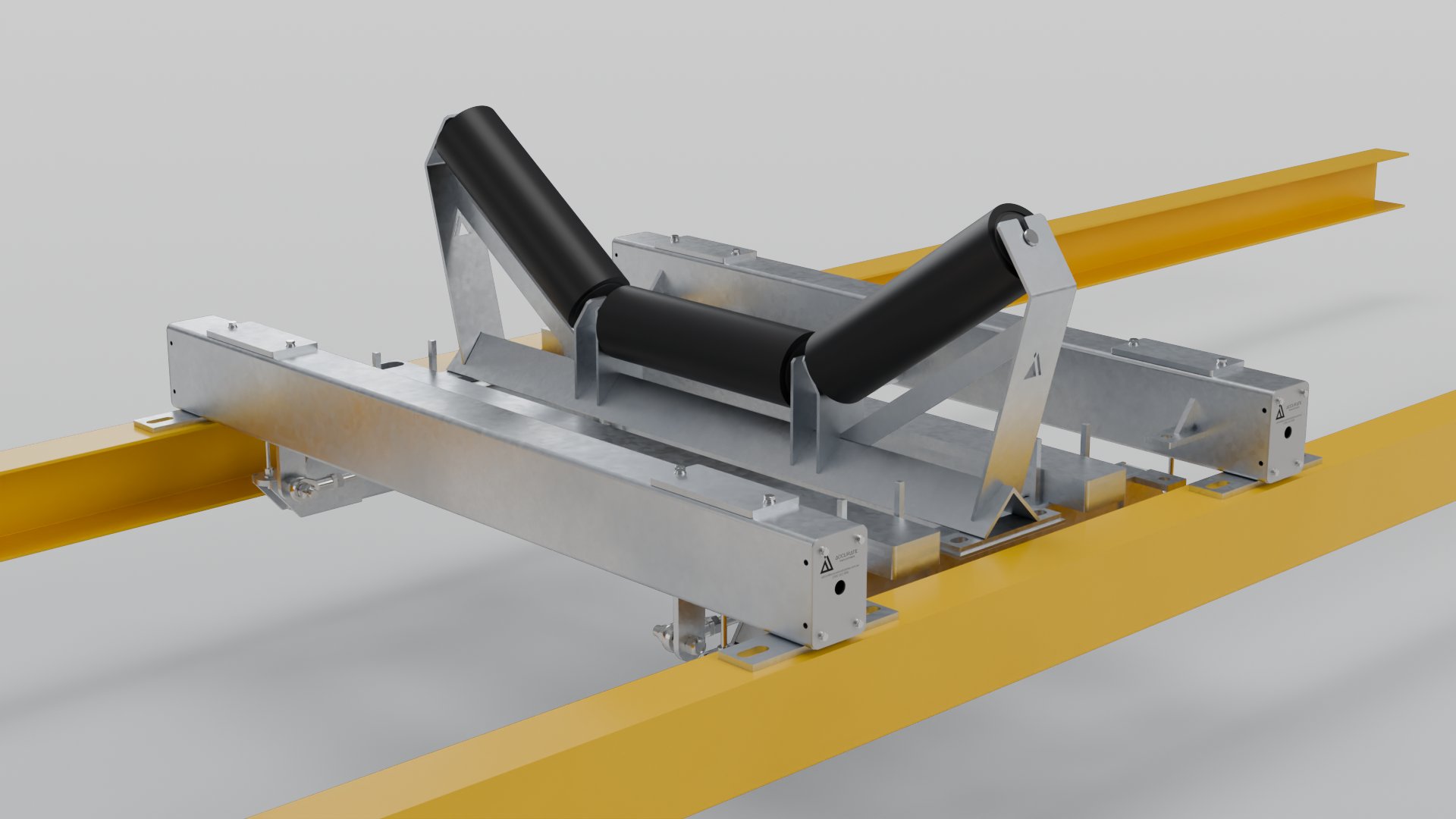

The single weigh idler frame on the scale, bolted between the conveyor stringers.

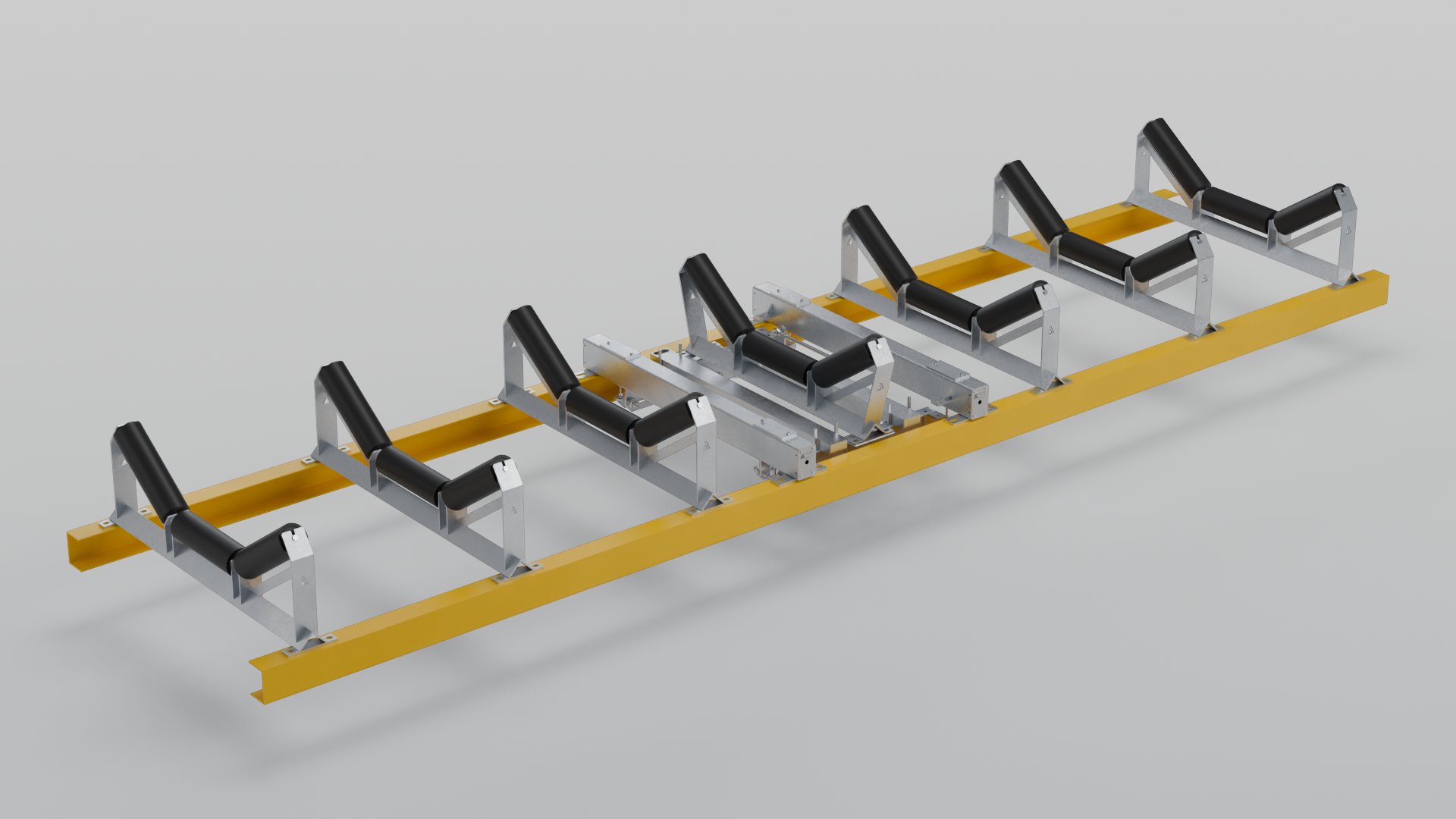

3. Off-scale idlers
Six standard idler frames either side of the scale, so the belt runs true through the weigh area.

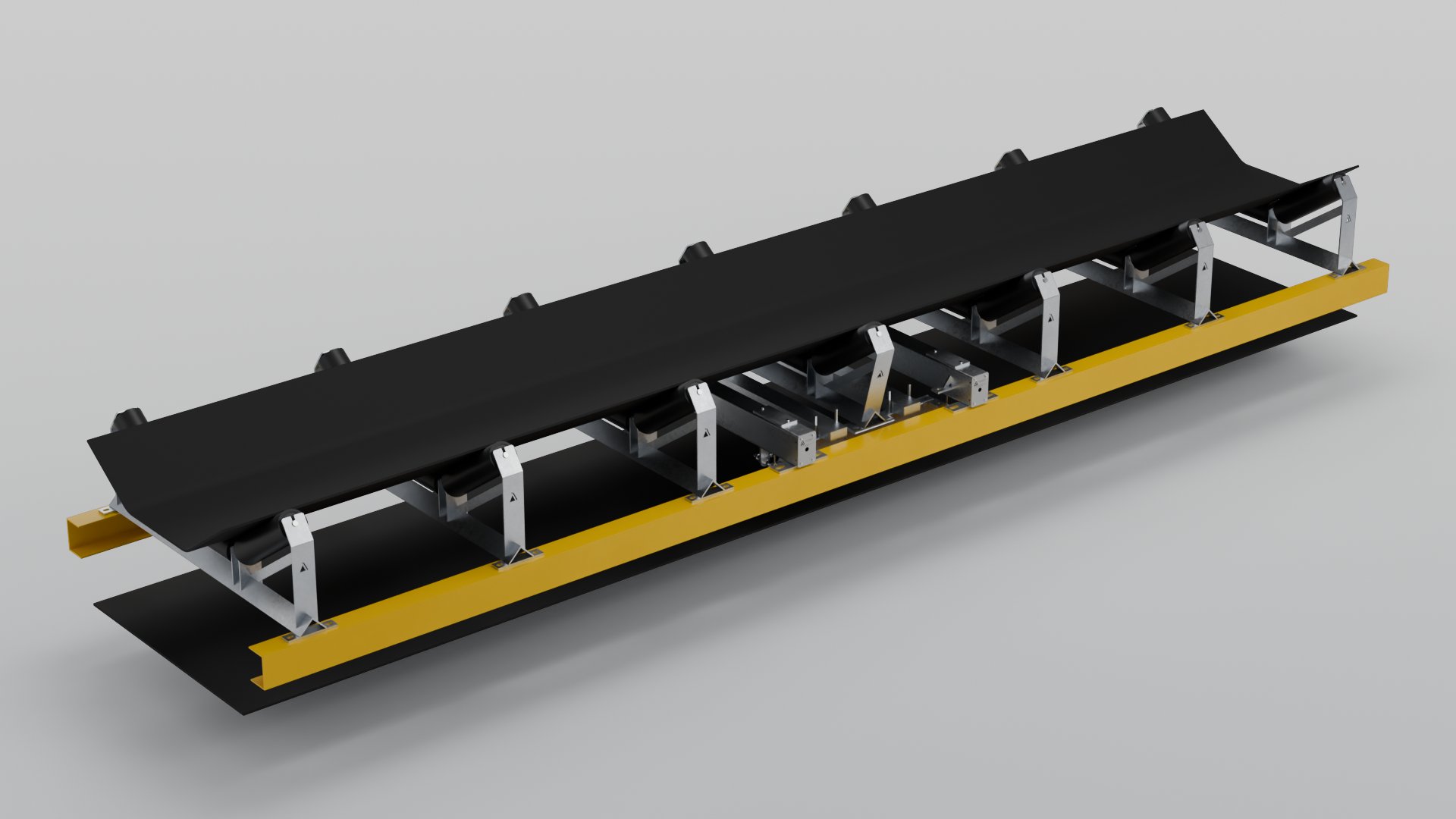

4. Belt fitted
Carry and return belt in place: the conveyor as it runs empty. Add the speed sensor and integrator and it is weighing.
Fully floating, four load cells, one weigh idler
- Four load cells under a fully floating weigh frame
- One weigh idler frame, with the speed sensor on the belt or tail drum
- Hot-dip galvanised mild steel, or stainless steel when needed
- Stored-in-place calibration weights available, quoted separately
- Belt widths 450 – 2,200 mm
PBW4-1 at a glance
| Weigh frame | Fully floating, four load cell |
|---|---|
| No. of weigh idlers | One |
| Belt width | 450 – 2,200 mm |
| Accuracy | ±0.25% of actual weight at belt speeds up to 1.0 m/s* |
| Max. rated belt speed | 3.5 m/s |
| Construction | Hot-dip galvanised mild steel, or stainless steel when needed |
| Finish | Galvanised, or bead blasted (stainless) |
| Calibration | Stored-in-place calibration weights available (plate weight or billet weight options), quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
PBW4-3
Three weigh idlers · ±0.20% at belt speeds up to 3.0 m/s* · rated to 6.0 m/s
PBW4-4
Four weigh idlers · ±0.125% at belt speeds up to 4.0 m/s* · rated to 8.0 m/s
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
