PBW4-2Precision belt weigher · four load cell, two idler
A fully floating weigh frame on four load cells with two weigh idlers: ±0.25% of actual weight at belt speeds up to 2.0 m/s*, rated to 5.0 m/s, for belts from 450 to 2,200 mm. Australian designed and made, in galvanised mild steel or stainless.
Or call 1300 101 666
Shown: PBW4-2 weighing coal on a 1200 mm belt (3D render from our CAD).
of actual weight, at belt speeds up to 2.0 m/s*
Watch a PBW4-2 weigh a running belt
A 3D animation of coal travelling over a PBW4-2 on a 1200 mm belt. The belt is slowed right down so you can see the two weigh idlers carrying the load; at real belt speed the material is a blur.
From bare frame to running conveyor
Every part of a PBW4-2 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idlers, speed sensor and off-scale idlers, plus the integrator and calibration.

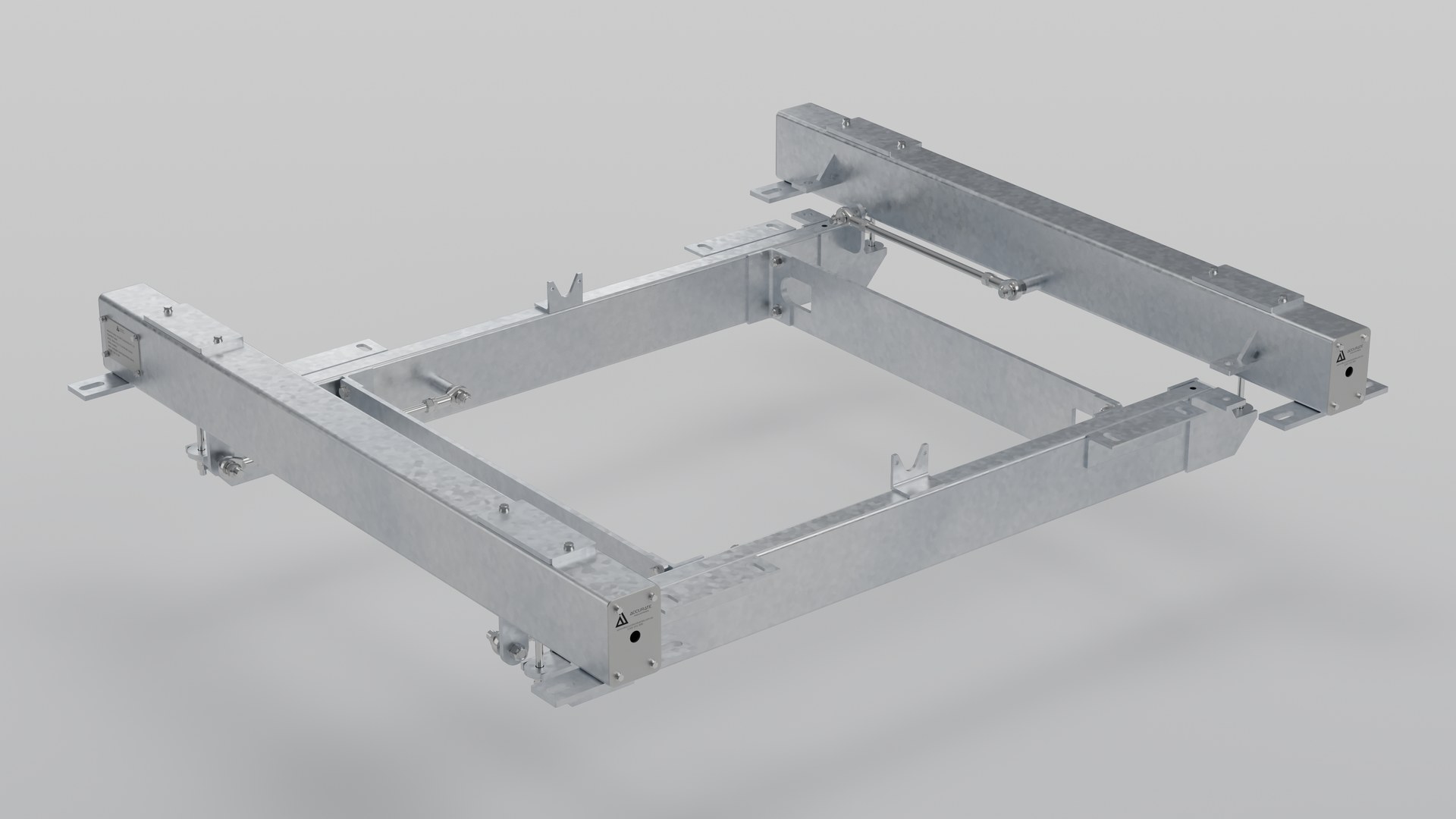

1. Frame as installed
The galvanised weigh frame, bolted between the conveyor stringers.

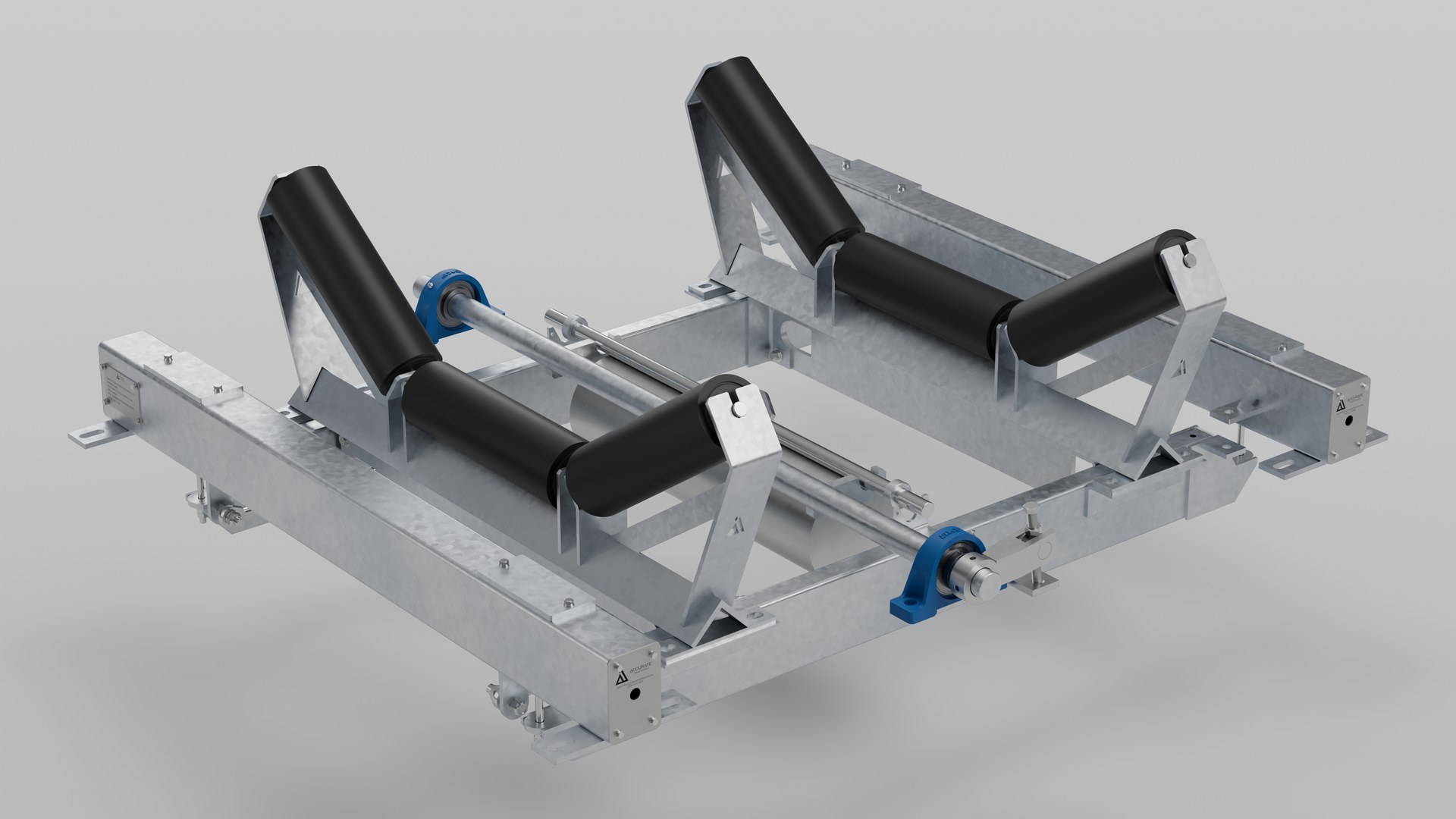

2. Weigh idlers and speed sensor
Two weigh idler frames on the scale, with the speed sensor wheel riding on the belt.

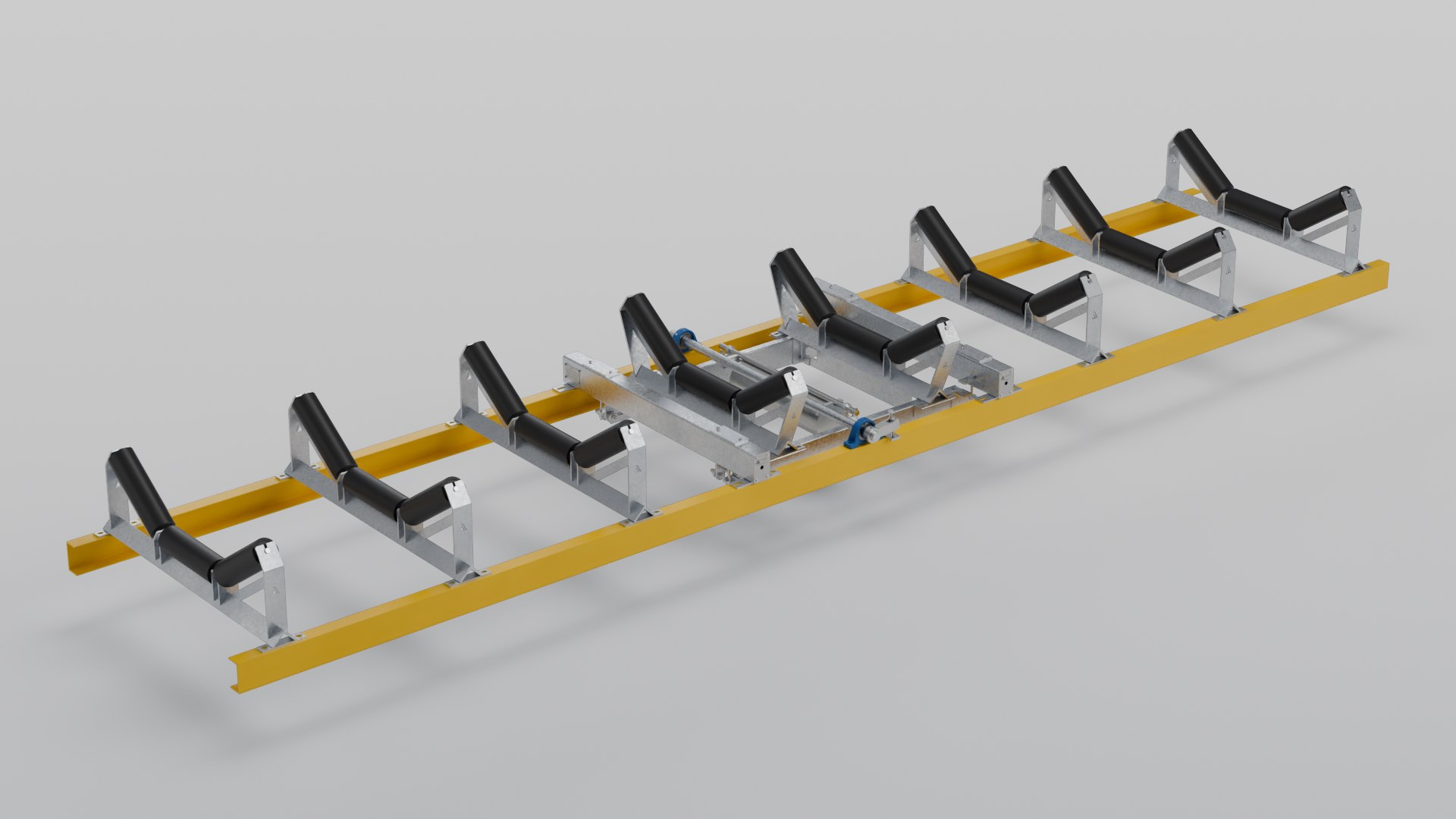

3. Off-scale idlers
Six standard idler frames either side of the scale, on the conveyor stringers.

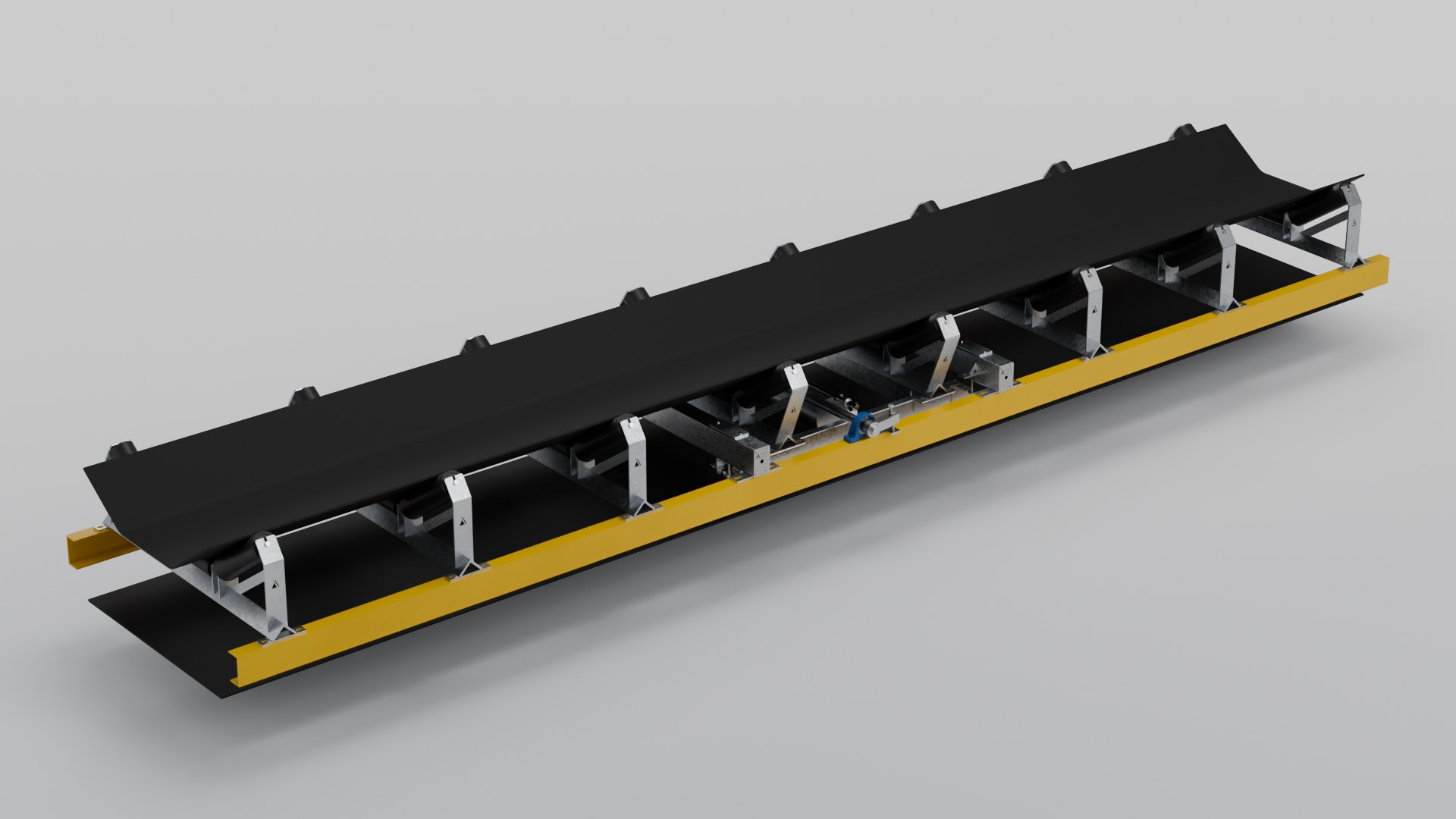

4. Belt fitted
Carry and return belt in place: the conveyor as it runs empty.

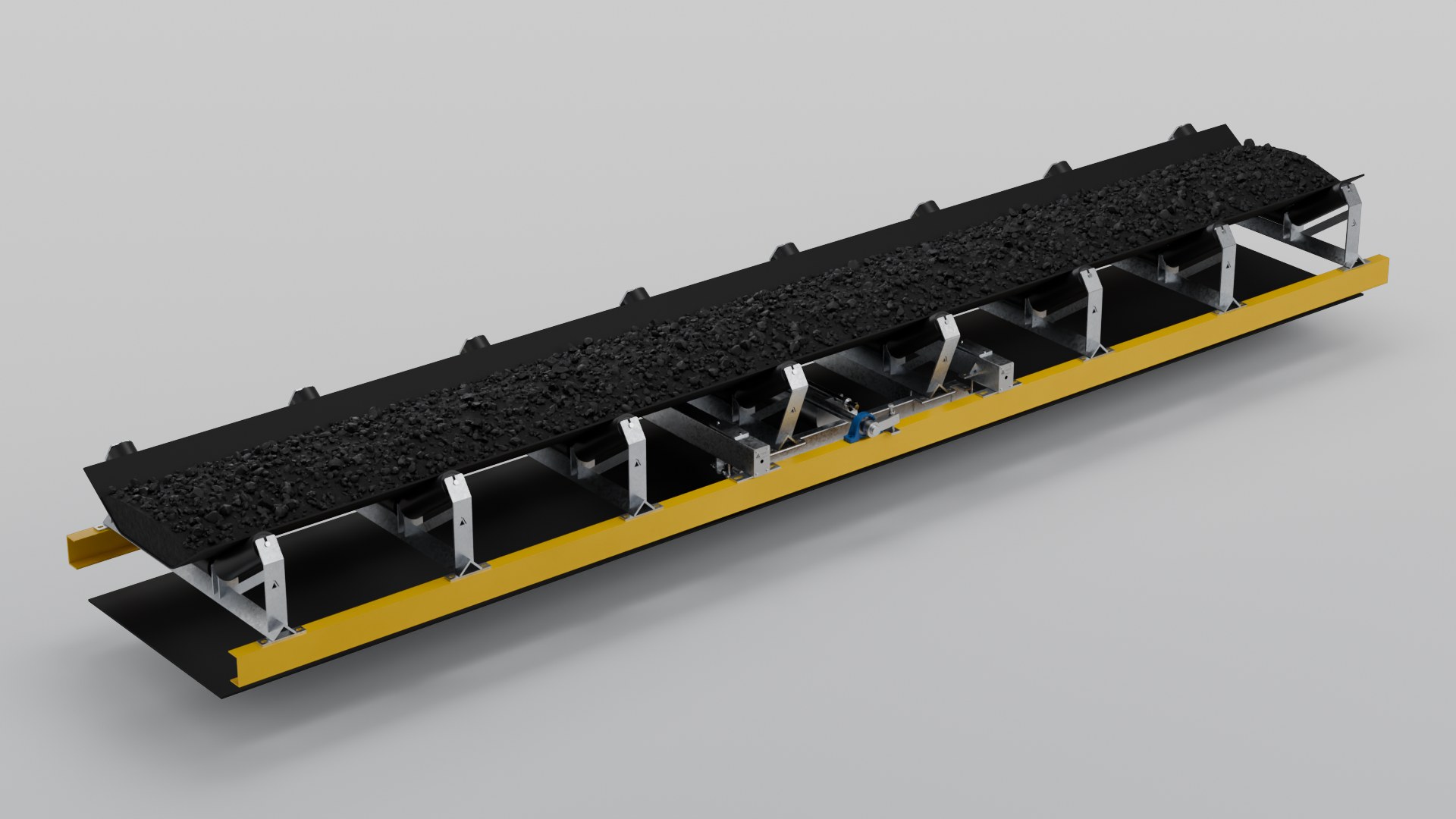

5. Loaded and weighing
Material on the belt. Four load cells under the weigh idlers measure the load while the speed sensor measures belt travel.
Fully floating, four load cells, two weigh idlers
- Four load cells under a fully floating weigh frame
- Two weigh idler frames with the speed sensor on the belt
- Hot-dip galvanised mild steel, or stainless steel when needed
- Stored-in-place calibration weights available, quoted separately
- Belt widths 450 – 2,200 mm
PBW4-2 at a glance
| Weigh frame | Fully floating, four load cell |
|---|---|
| No. of weigh idlers | Two |
| Belt width | 450 – 2,200 mm |
| Accuracy | ±0.25% of actual weight at belt speeds up to 2.0 m/s* |
| Max. rated belt speed | 5.0 m/s |
| Construction | Hot-dip galvanised mild steel, or stainless steel when needed |
| Finish | Galvanised, or bead blasted (stainless) |
| Calibration | Stored-in-place calibration weights available (plate weight or billet weight options), quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
PBW4-1
Single weigh idler · ±0.25% at belt speeds up to 1.0 m/s* · rated to 3.5 m/s
PBW4-3
Three weigh idlers · ±0.20% at belt speeds up to 3.0 m/s* · rated to 6.0 m/s
PBW4-4
Four weigh idlers · ±0.125% at belt speeds up to 4.0 m/s* · rated to 8.0 m/s
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
