CBW1-1 MultiwidthCompact belt weigher · single load cell, bolt-together
The bolt-together version of the CBW1-1, usually in stock for fast despatch, with lever-applied stored-in-place calibration weights available. ±0.50% of actual weight at belt speeds up to 2.0 m/s*, rated to 3.5 m/s, for belts up to 1,000 mm. Australian designed and made.
Or call 1300 101 666
Shown: a welded CBW1-1 on a running conveyor (3D render from our CAD).
of actual weight, at belt speeds up to 2.0 m/s*

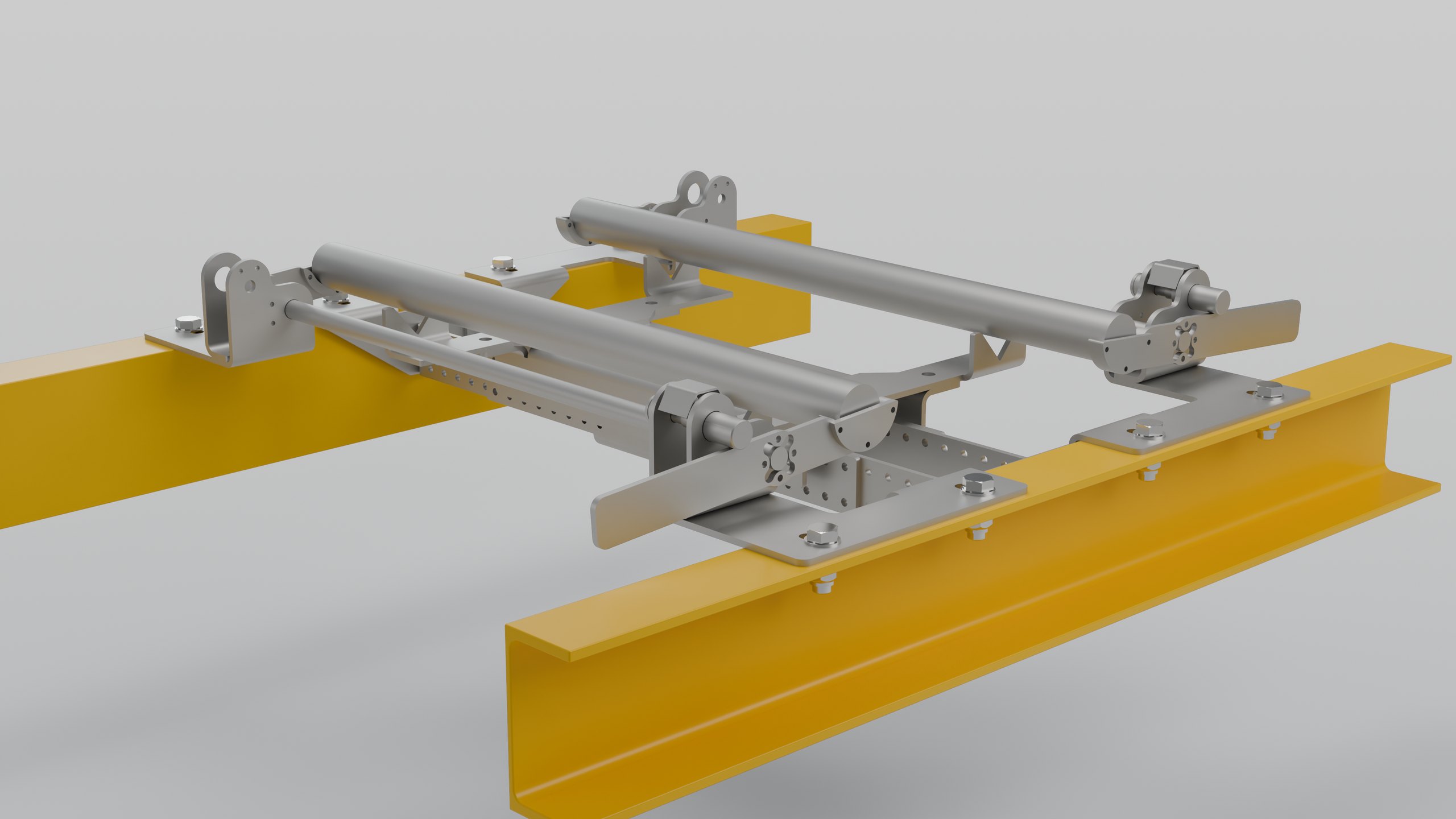

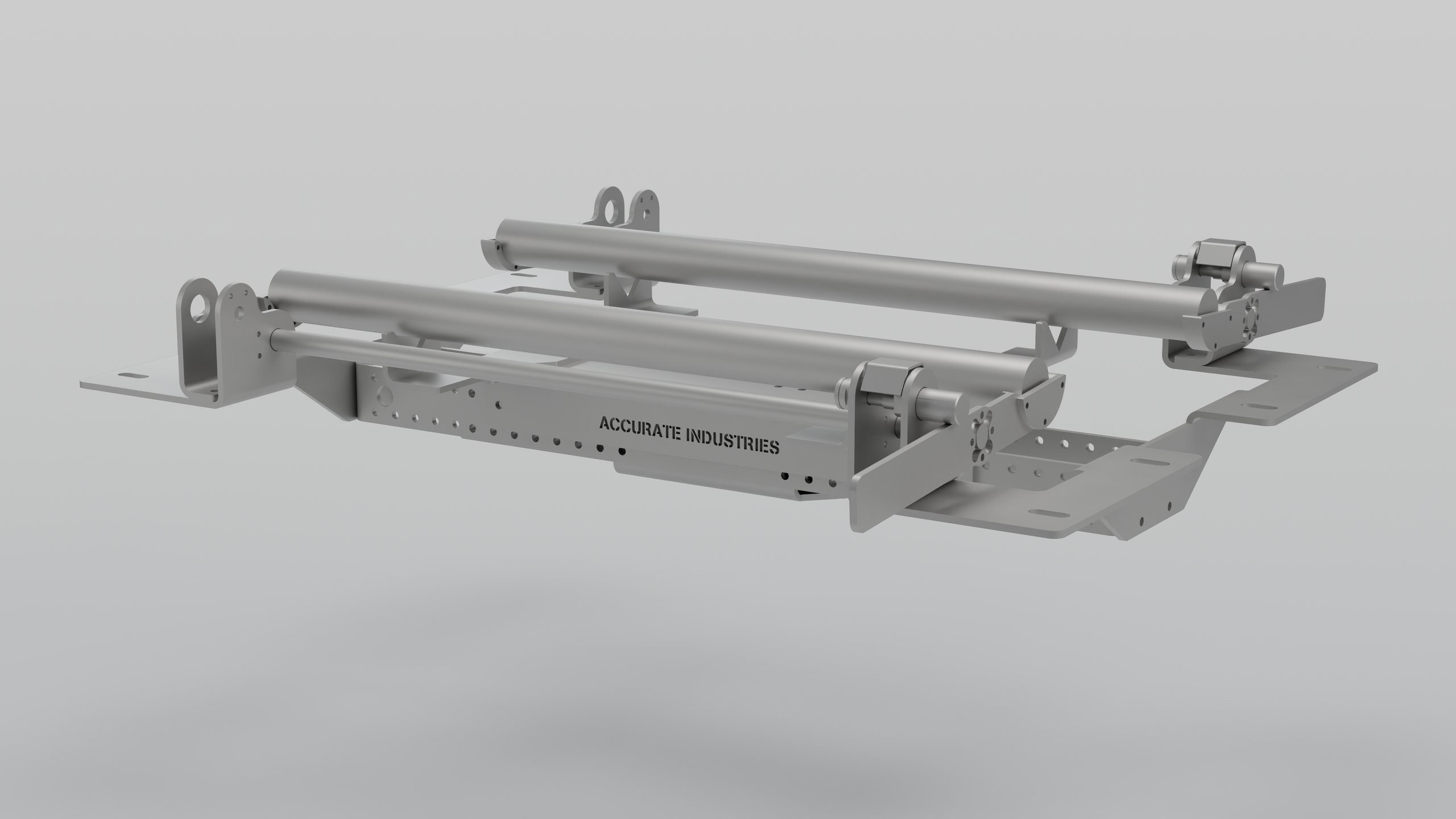

The CBW1-1 Multiwidth module
A single load cell and one weigh idler in a bead-blasted stainless steel module that bolts together on site. Because it is a standard module rather than a custom weldment, it is usually on the shelf, ready for fast despatch.
From bare frame to running conveyor
Every part of a CBW1-1 Multiwidth installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idler, speed sensor and off-scale idlers, plus the integrator and calibration.

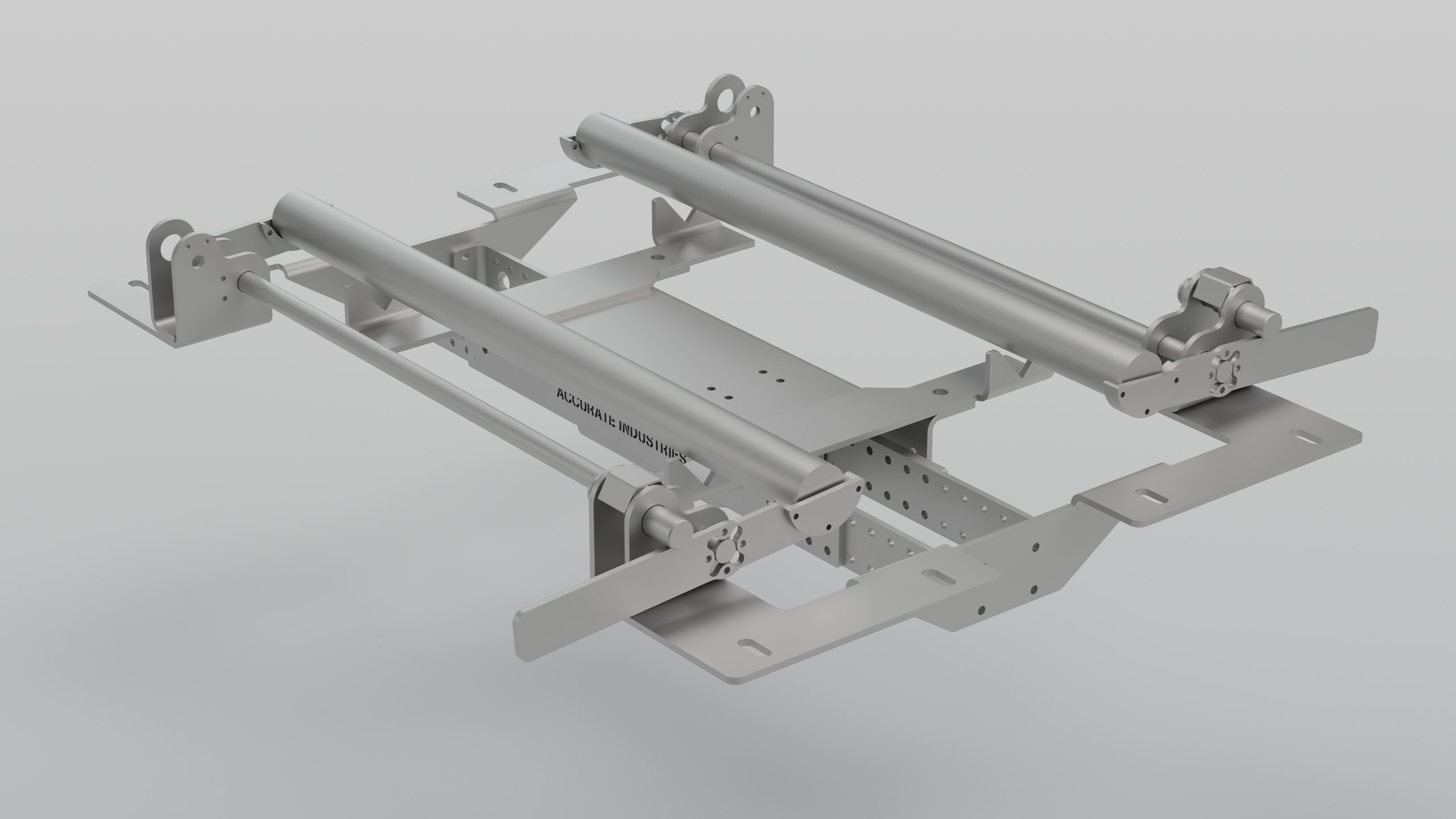

1. The module
The bolt-together stainless steel module on its single load cell.

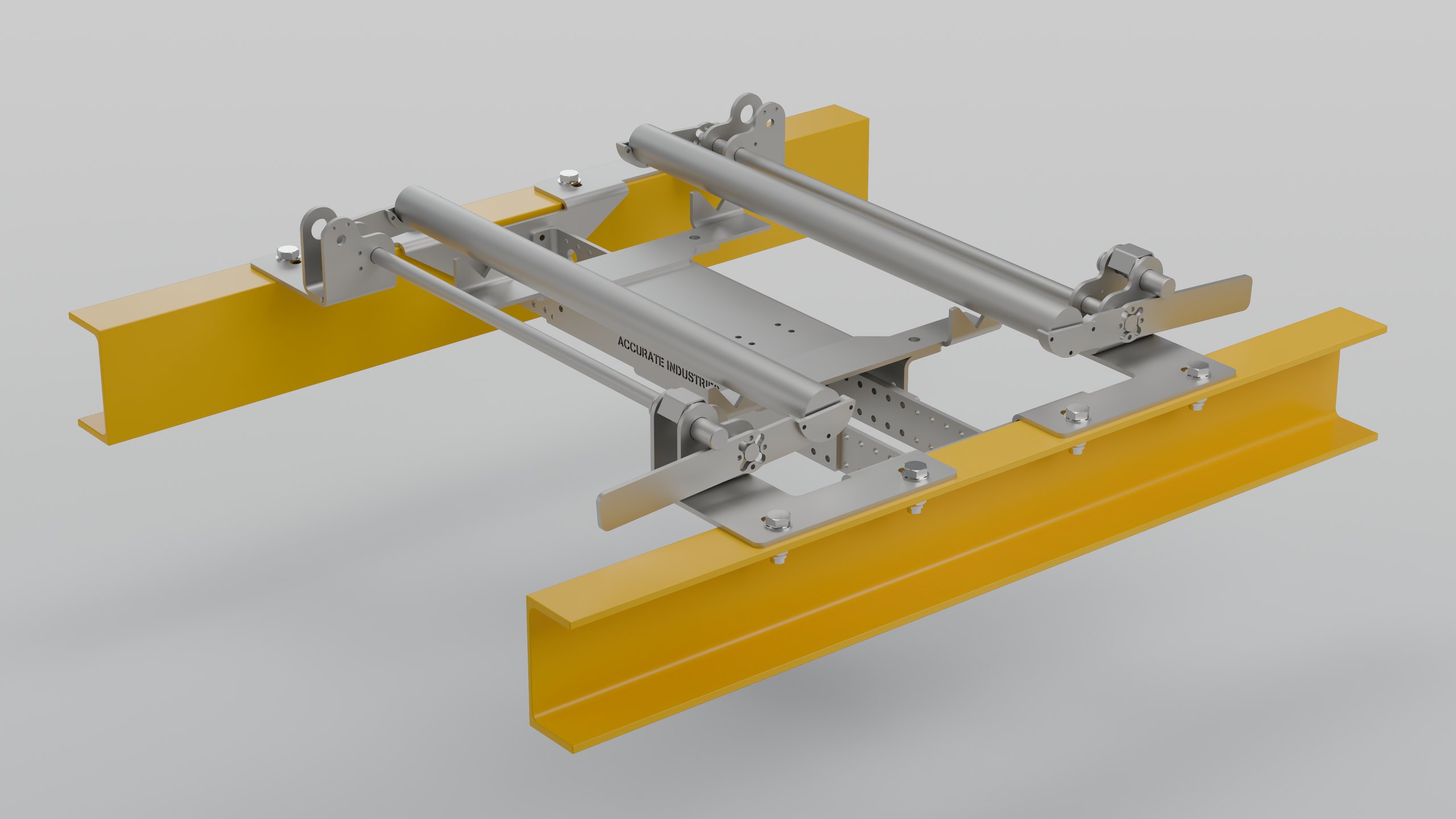

2. On the stringers
The module bolted between the conveyor stringers, ready for its weigh idler.

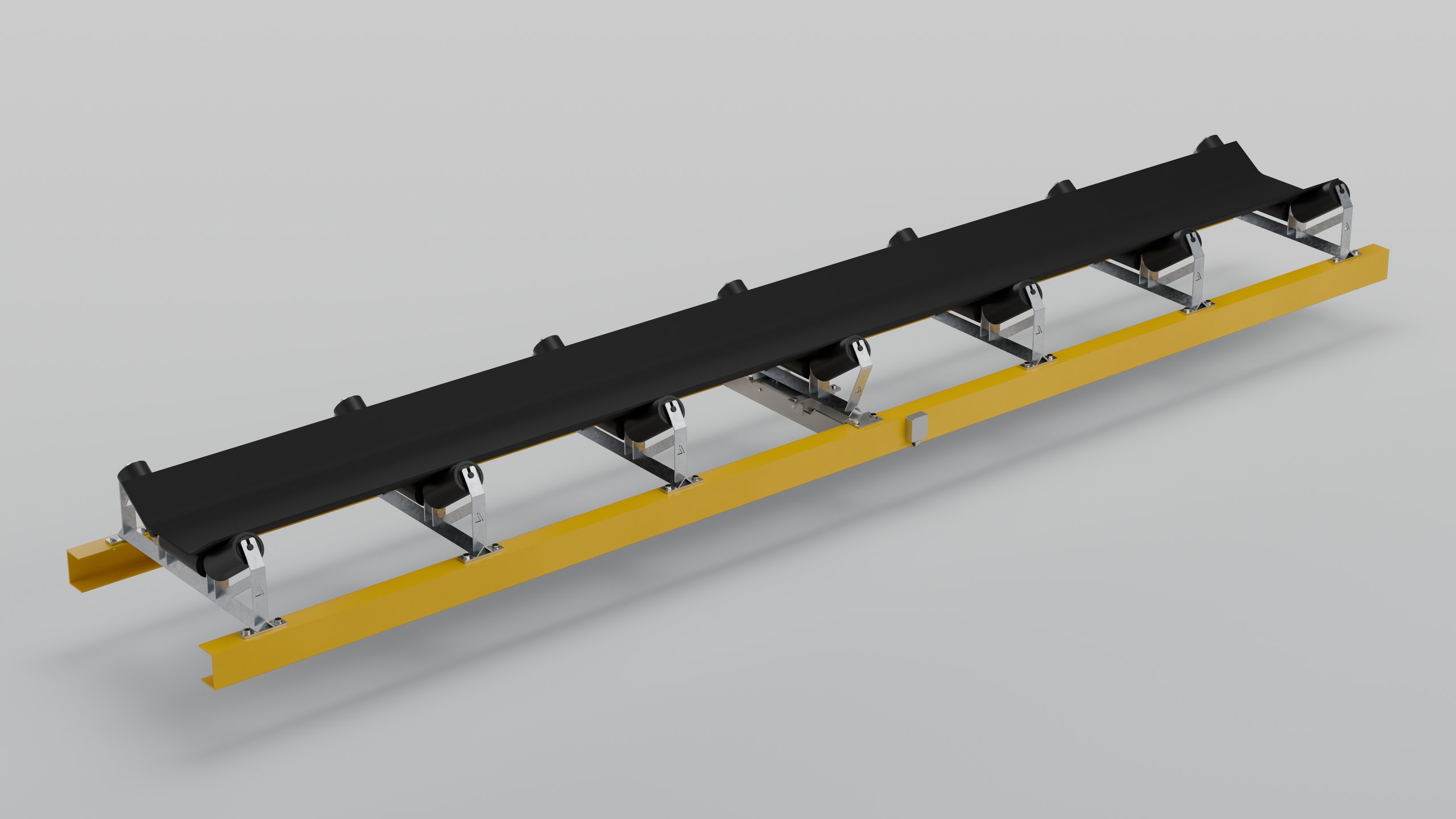

3. Belt fitted
Carry and return belt in place: the conveyor as it runs empty. Shown on the welded CBW1-1.

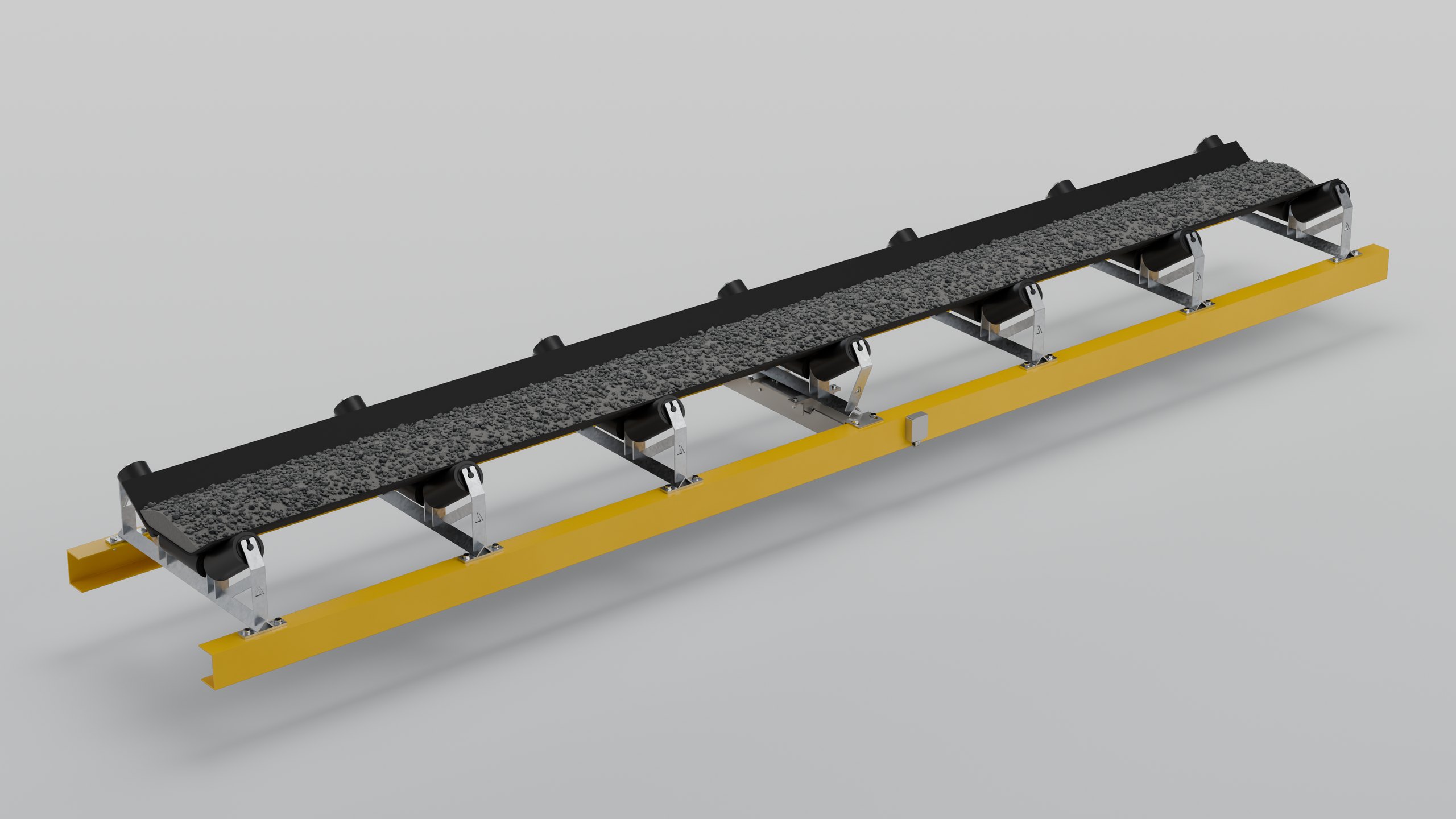

4. Loaded and weighing
Material on the belt: the load cell measures the load while the speed sensor measures belt travel. Shown on the welded CBW1-1.
One load cell, one weigh idler, bolt-together
- A single load cell under a bolt-together module
- One weigh idler frame
- Bead-blasted stainless steel, usually in stock for fast despatch
- Lever-applied stored-in-place calibration weights available, quoted separately
- Belts up to 1,000 mm wide
CBW1-1 Multiwidth at a glance
| Weigh frame | Compact, single load cell, bolt-together module |
|---|---|
| No. of weigh idlers | One |
| Belt width | Up to 1,000 mm |
| Accuracy | ±0.50% of actual weight at belt speeds up to 2.0 m/s*; ±1.00% of actual weight at belt speeds up to 3.5 m/s* |
| Max. rated belt speed | 3.5 m/s |
| Construction | Bead-blasted stainless steel, bolt-together module |
| Finish | Bead blasted (stainless) |
| Calibration | Lever-applied stored-in-place calibration weights available, quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
CBW1-1
Fully welded, custom-built · one load cell · ±0.50% at belt speeds up to 2.0 m/s* · belts up to 1,000 mm
CBW2-1
One-piece drop-in module · two load cells · ±0.50% at belt speeds up to 2.0 m/s* · belts up to 2,000 mm
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
