CBW2-1Compact belt weigher · two load cell, drop-in module
A single one-piece stainless steel drop-in module with two load cells, for belts up to 2,000 mm: ±0.50% of actual weight at belt speeds up to 2.0 m/s*, rated to 3.5 m/s, with two independent stored-in-place calibration weights available. Australian designed and made.
Or call 1300 101 666
Shown: CBW2-1 weighing aggregate on a running conveyor (3D render from our CAD).
of actual weight, at belt speeds up to 2.0 m/s*
On the belt
A CBW2-1 weighing aggregate on a running conveyor.
From bare frame to running conveyor
Every part of a CBW2-1 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idler, speed sensor and off-scale idlers, plus the integrator and calibration.

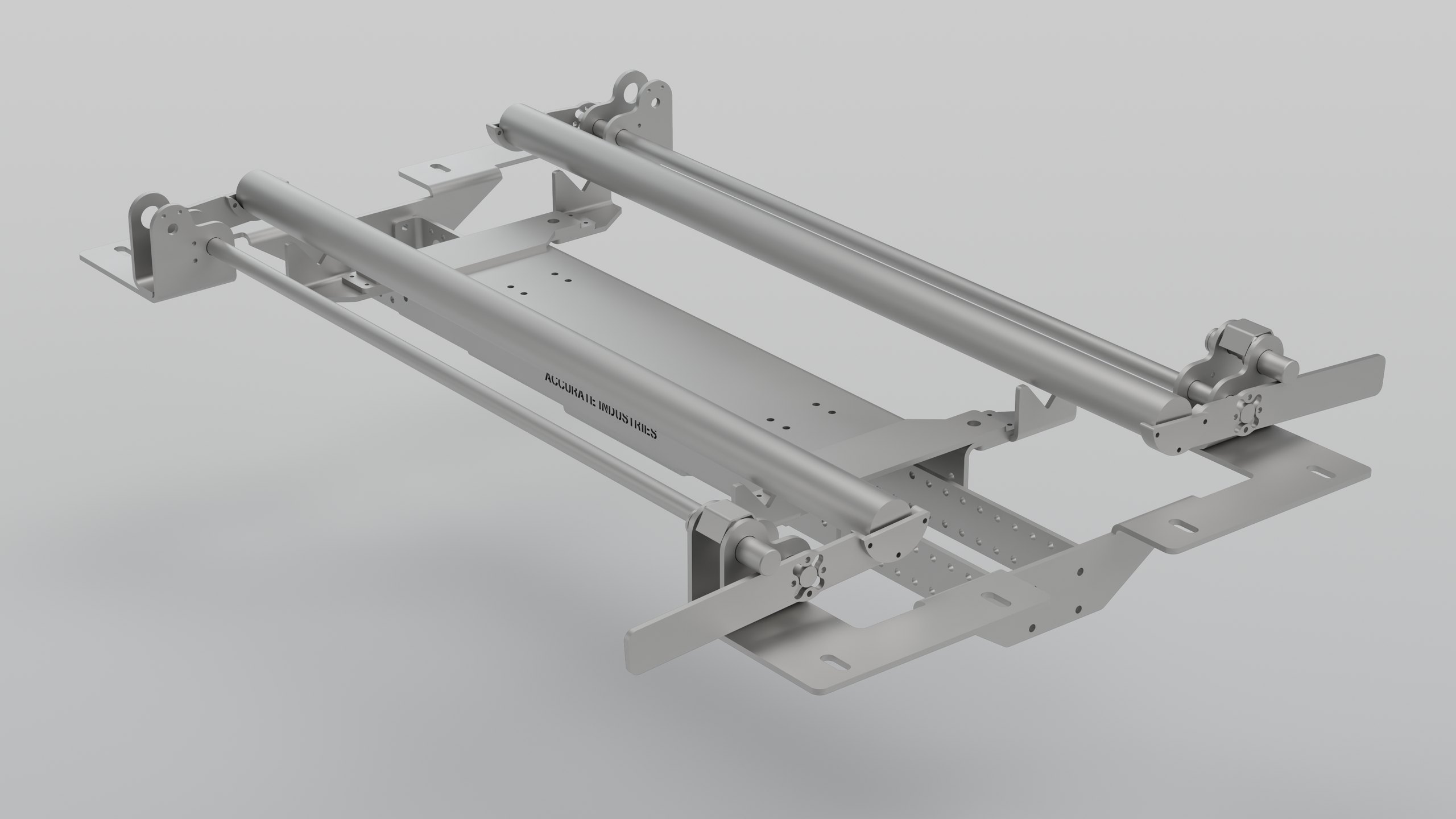

1. The module on its own
The one-piece stainless steel module on its two load cells, shown with its calibration bars.

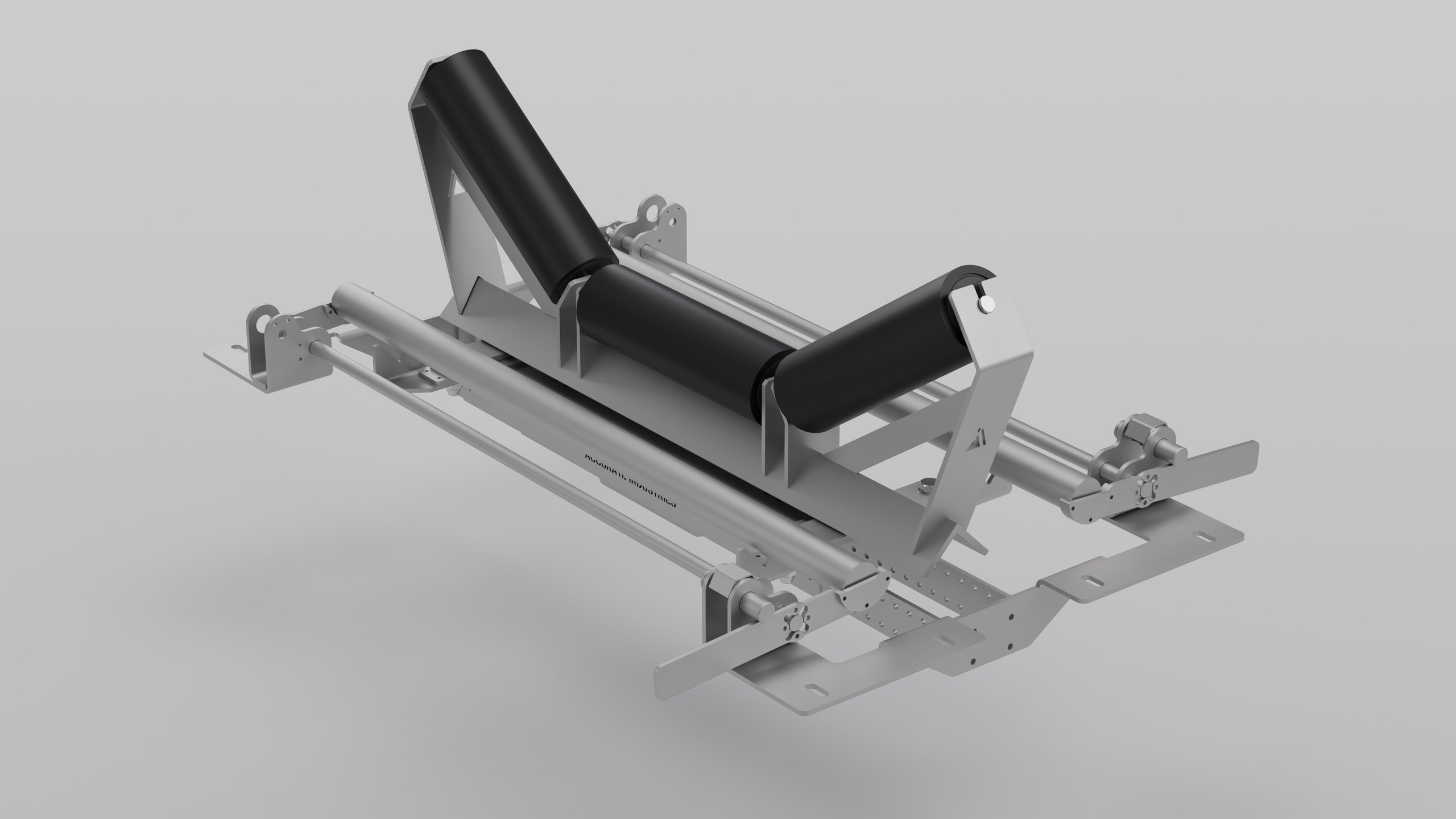

2. Weigh idler fitted
The weigh idler bolts to the module’s carriage.

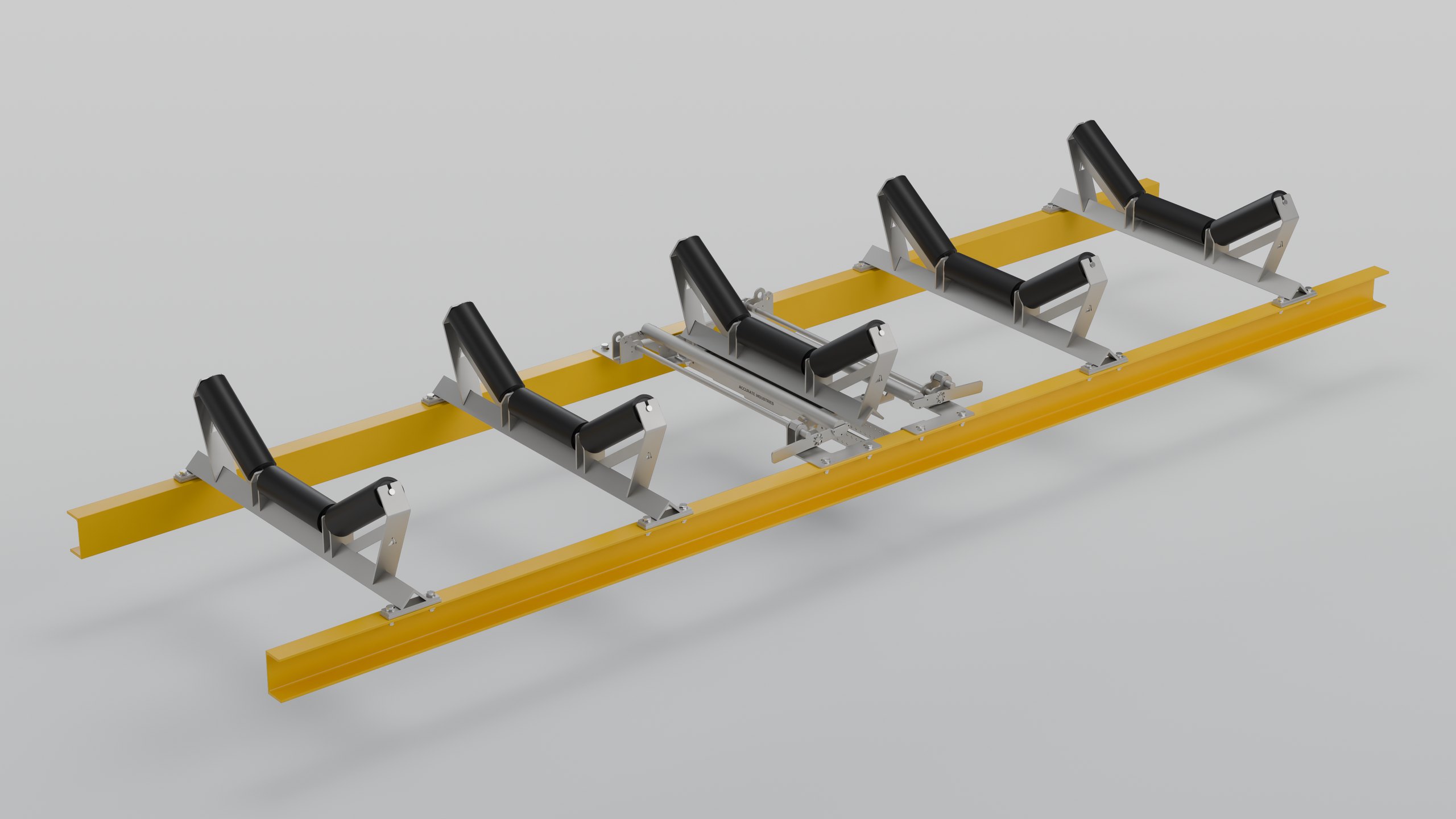

3. In the conveyor
On the stringers, with off-scale idlers either side of the scale.

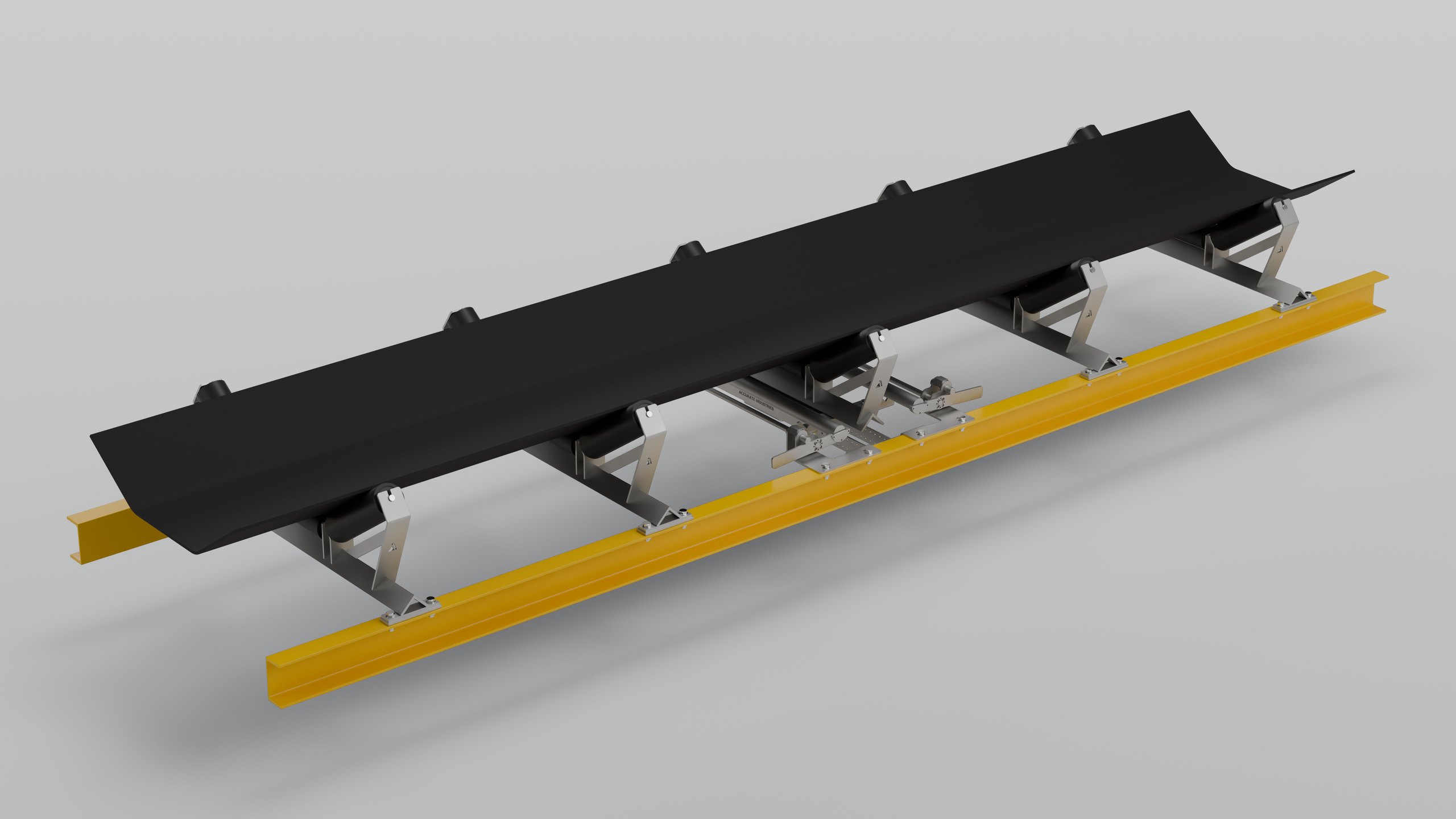

4. Belt fitted
Carry belt in place: the conveyor as it runs empty.

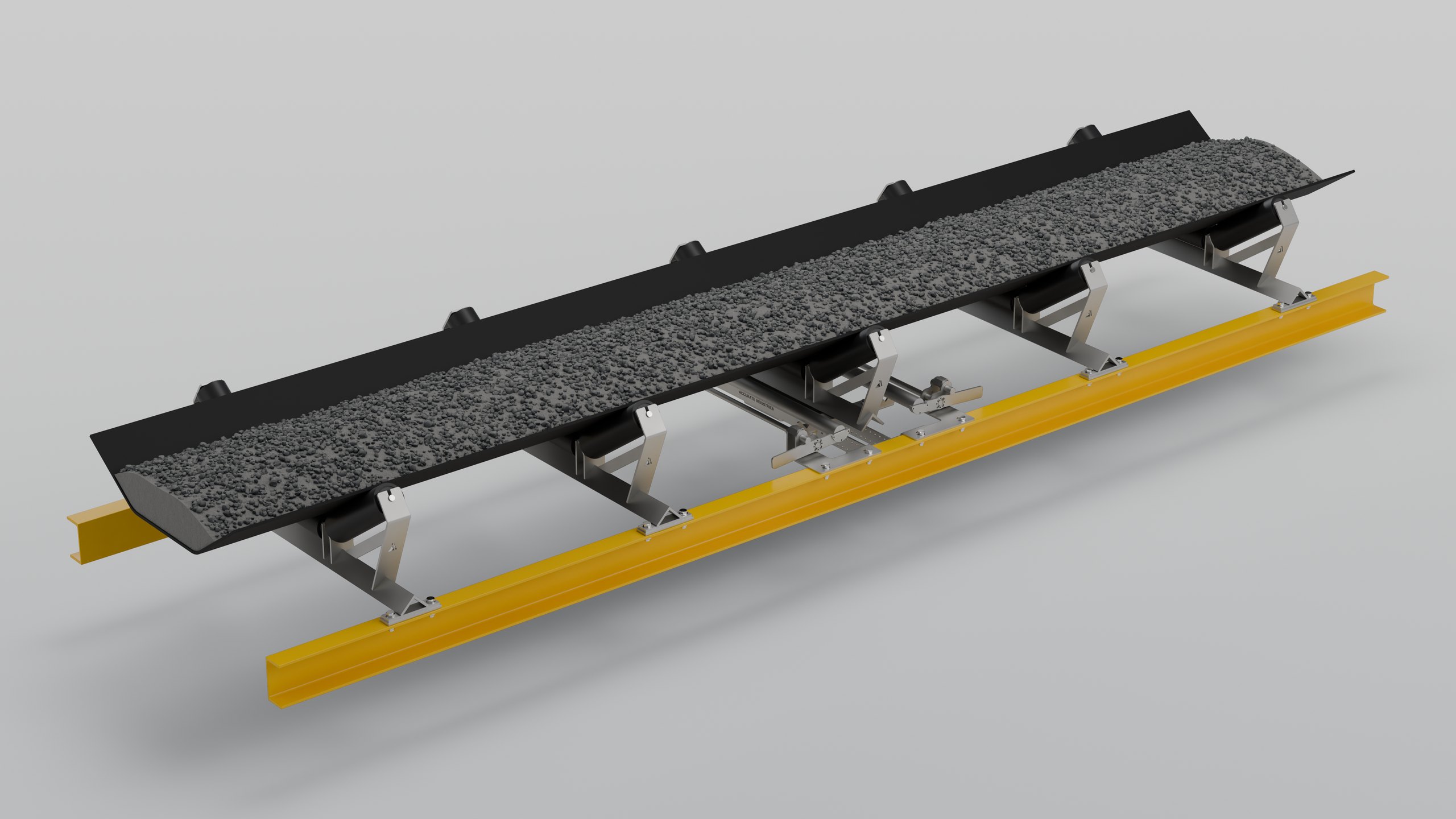

5. Loaded and weighing
20 mm aggregate on the belt. Two load cells measure the load; the speed sensor measures belt travel.
Two load cells, one idler, one piece
- Two load cells for larger belt widths, up to 2,000 mm
- Single one-piece stainless steel drop-in module
- Two independent stored-in-place calibration weights available, quoted separately
- Single idler compact belt weigher arrangement
- Full stainless steel construction, bead blasted finish
CBW2-1 at a glance
| Weigh frame | Compact, two load cell, one-piece drop-in module |
|---|---|
| No. of weigh idlers | One |
| Belt width | Up to 2,000 mm |
| Accuracy | ±0.50% of actual weight at belt speeds up to 2.0 m/s*; ±1.00% of actual weight at belt speeds up to 3.5 m/s* |
| Max. rated belt speed | 3.5 m/s |
| Construction | Bead-blasted stainless steel, one-piece module |
| Finish | Bead blasted (stainless) |
| Calibration | Two independent stored-in-place calibration weights available, quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
CBW1-1
Fully welded, custom-built · one load cell · ±0.50% at belt speeds up to 2.0 m/s* · belts up to 1,000 mm
CBW1-1 Multiwidth
Bolt-together module, usually in stock · one load cell · ±0.50% at belt speeds up to 2.0 m/s*
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
