CBW1-1Compact belt weigher · single load cell, welded
A fully welded, custom-built single-idler scale in bead-blasted stainless steel: ±0.50% of actual weight at belt speeds up to 2.0 m/s*, rated to 3.5 m/s, for belts up to 1,000 mm. Built to the conveyor, Australian designed and made.
Or call 1300 101 666

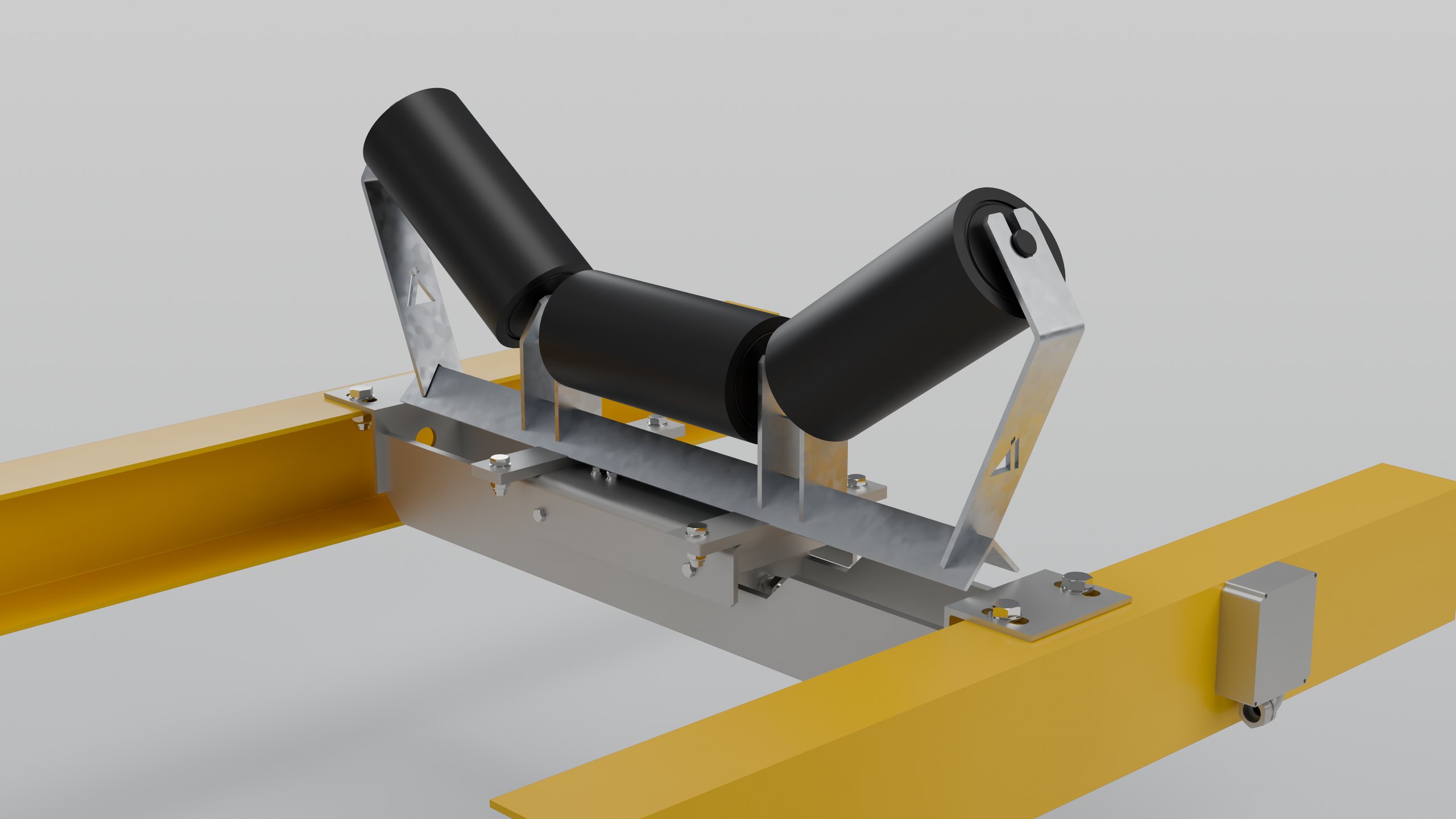

Shown: CBW1-1 compact belt weigher on a running conveyor (3D render from our CAD).
of actual weight, at belt speeds up to 2.0 m/s*
The CBW1-1 under load
One load cell, one weigh idler, welded into a single bead-blasted stainless steel scale built to suit the conveyor. The simplest way to weigh a conveyor: ±0.50% of actual weight at belt speeds up to 2.0 m/s*, and ±1.00% at belt speeds up to 3.5 m/s*.
From bare frame to running conveyor
Every part of a CBW1-1 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idler, speed sensor and off-scale idlers, plus the integrator and calibration.

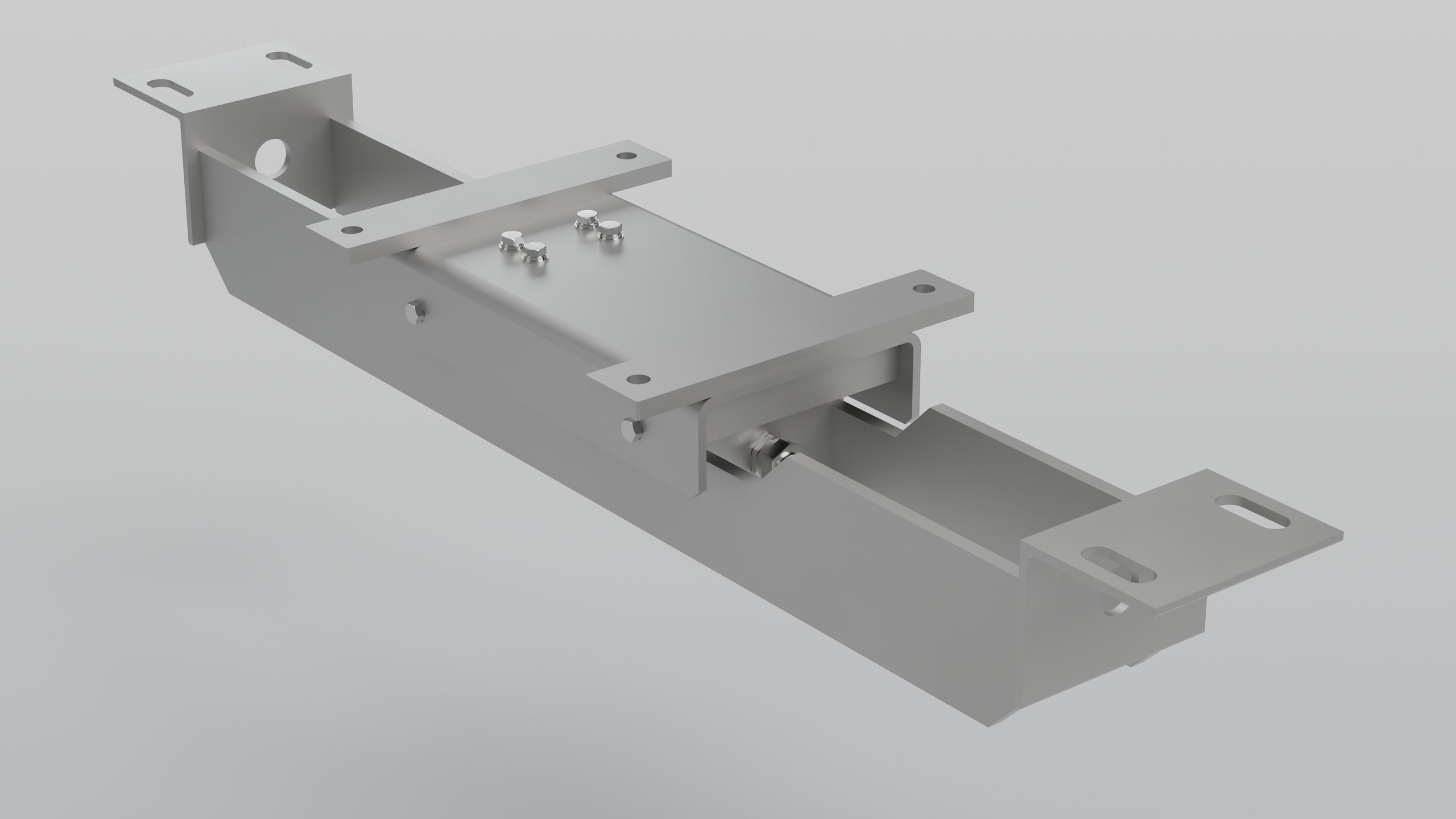

1. The welded weigher
The fully welded stainless steel scale on its single load cell, built to suit the conveyor.

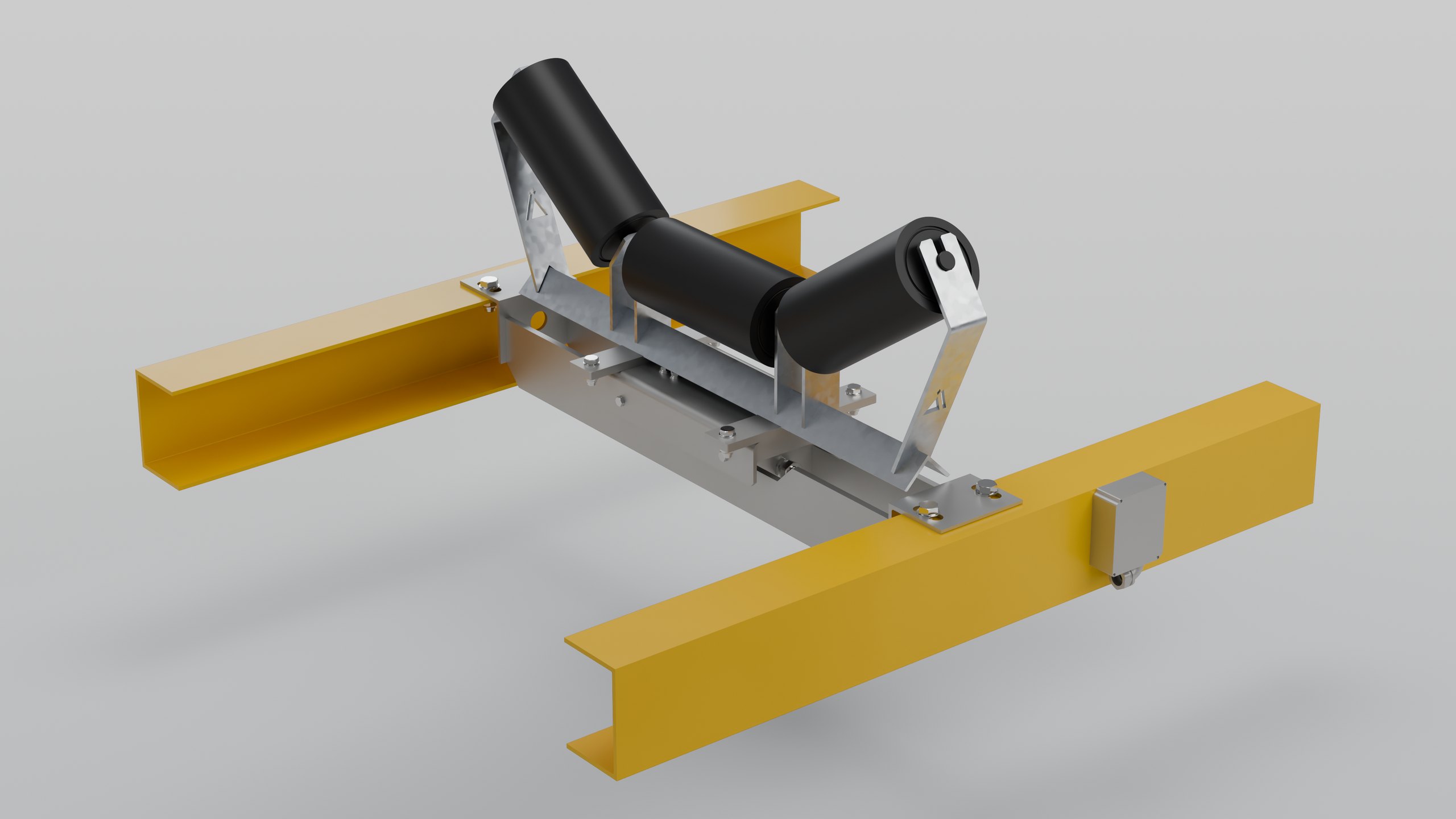

2. Weigh idler, on the stringers
The weigh idler frame on the scale, fixed between the conveyor stringers.

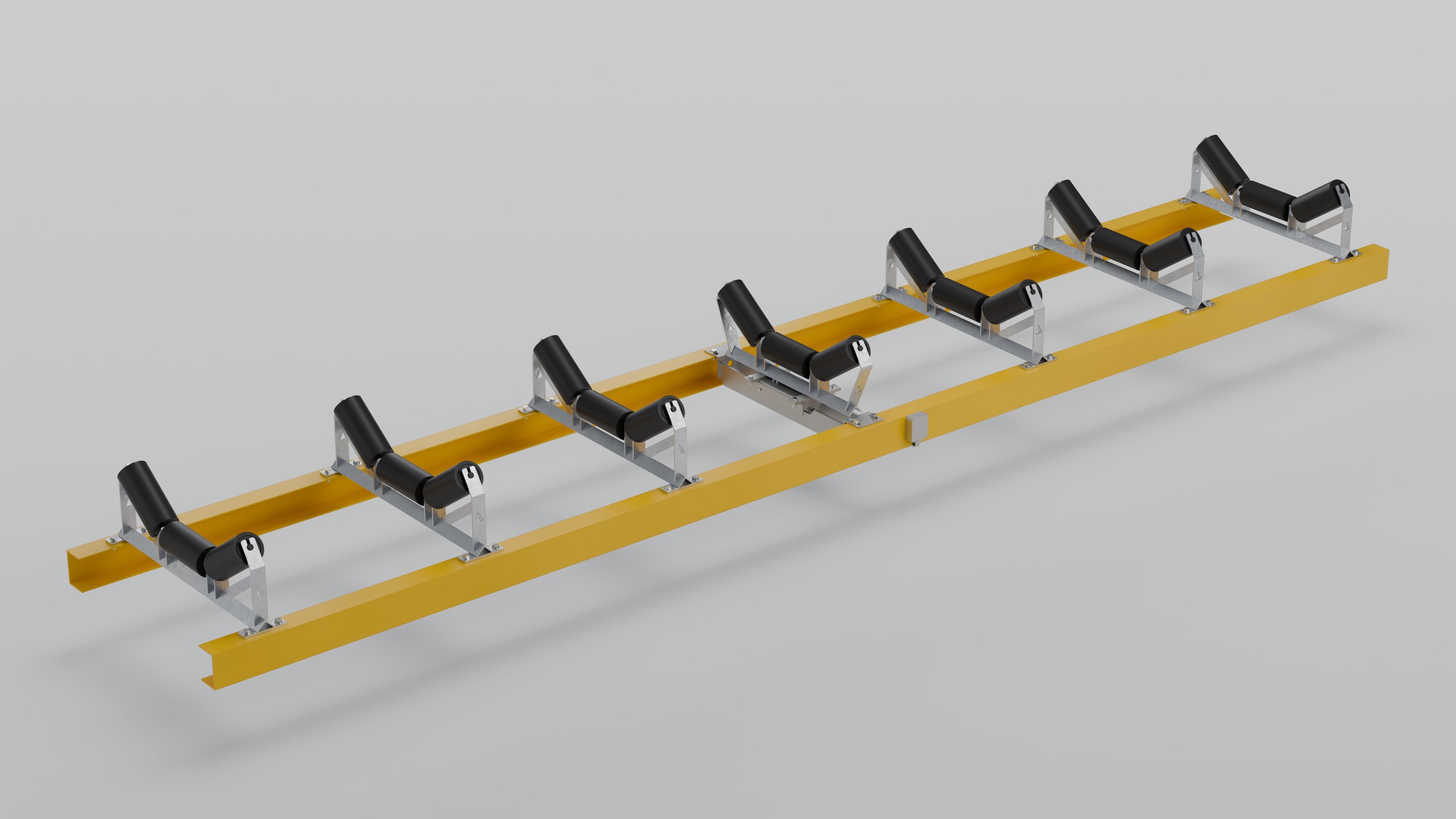

3. In the conveyor
Standard idler frames either side of the scale, so the belt runs true through the weigh area.
4. Belt fitted
Carry and return belt in place: the conveyor as it runs empty.

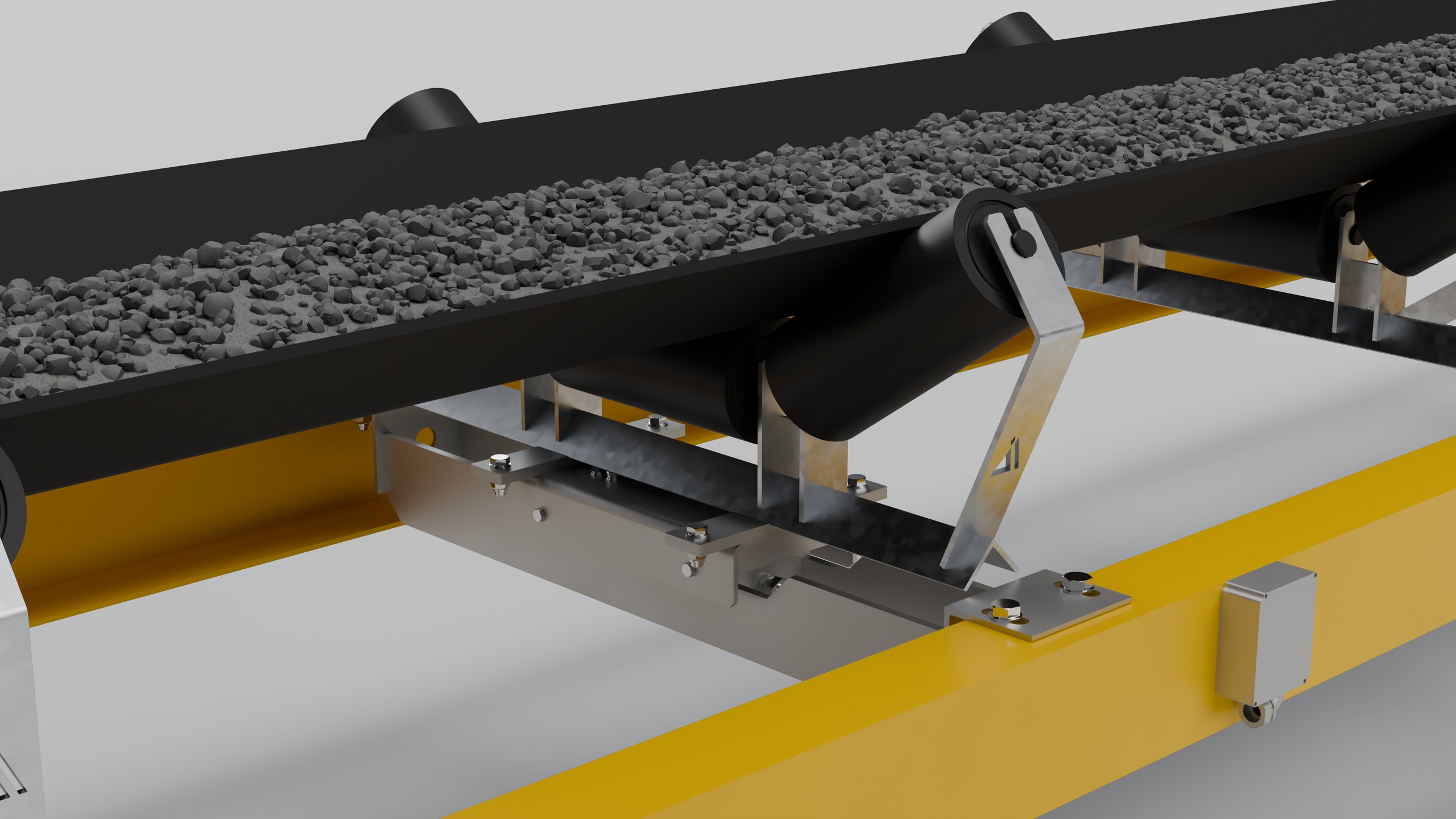

5. Loaded and weighing
Material on the belt. The load cell measures the load while the speed sensor measures belt travel.
One load cell, one weigh idler, fully welded
- A single load cell under a fully welded scale
- One weigh idler frame
- Bead-blasted stainless steel, custom-built for the conveyor
- Stored-in-place calibration weights available, quoted separately
- Belts up to 1,000 mm wide
CBW1-1 at a glance
| Weigh frame | Compact, single load cell, fully welded |
|---|---|
| No. of weigh idlers | One |
| Belt width | Up to 1,000 mm |
| Accuracy | ±0.50% of actual weight at belt speeds up to 2.0 m/s*; ±1.00% of actual weight at belt speeds up to 3.5 m/s* |
| Max. rated belt speed | 3.5 m/s |
| Construction | Bead-blasted stainless steel, fully welded, custom-built |
| Finish | Bead blasted (stainless) |
| Calibration | Stored-in-place calibration weights available (plate weight or billet weight options), quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
CBW1-1 Multiwidth
Bolt-together module, usually in stock · one load cell · ±0.50% at belt speeds up to 2.0 m/s*
CBW2-1
One-piece drop-in module · two load cells · ±0.50% at belt speeds up to 2.0 m/s* · belts up to 2,000 mm
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
