PBW2-1Precision belt weigher · two load cell, single idler
One weigh idler on a centrally floating weigh frame with two stainless S-type load cells (OIML R60 C3, IP67): ±0.50% of actual weight at belt speeds up to 1.5 m/s*, rated to 6.0 m/s, for belts from 750 to 2,000 mm. Australian designed and made.
Or call 1300 101 666
Shown: a PBW2-2 on a running belt; the PBW2-1 header is still to be rendered.
of actual weight, at belt speeds up to 1.5 m/s*
The PBW2-1 weigh frame

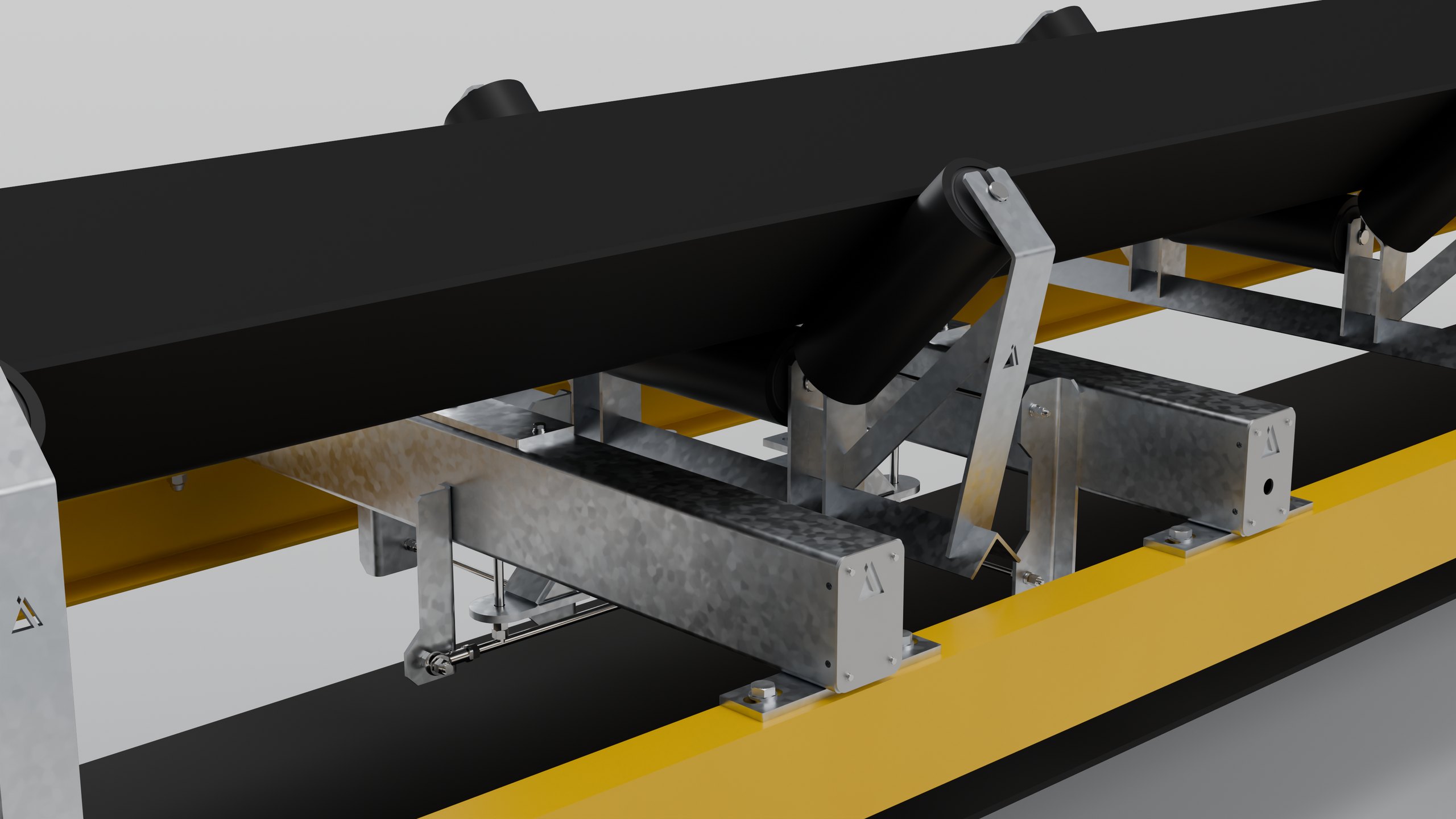

A centrally floating weigh frame on two stainless S-type load cells, carrying a single weigh idler: the simplest Precision frame, for belts that run at up to 1.5 m/s where ±0.50% of actual weight is needed. Shown in hot-dip galvanised mild steel in the conveyor; stainless steel when needed.
From bare frame to running conveyor
Every part of a PBW2-1 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idler, speed sensor and off-scale idlers, plus the integrator and calibration.
1. The weigh frame

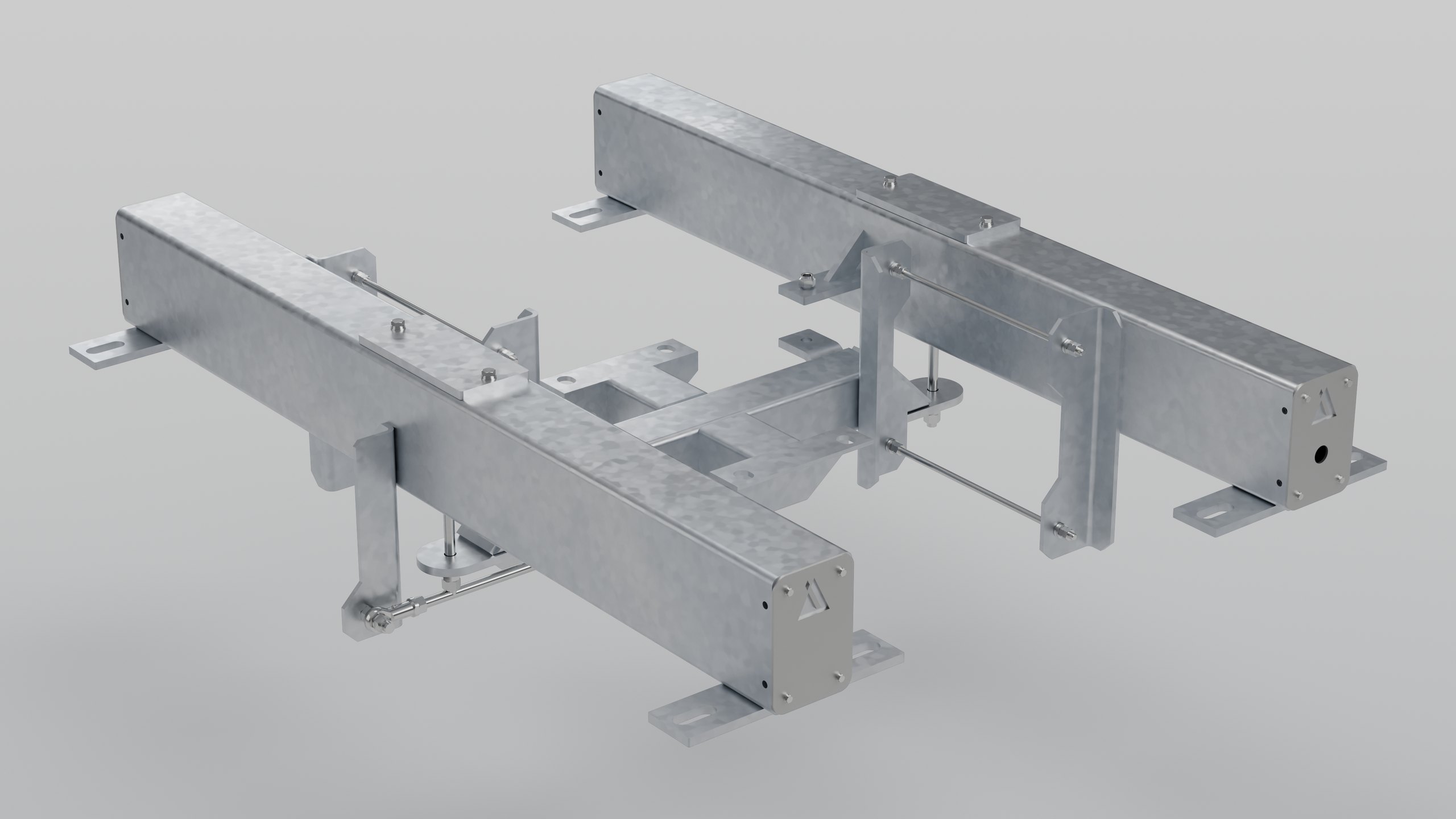

The galvanised, centrally floating weigh frame on its two S-type load cells.
2. Weigh idler, on the stringers

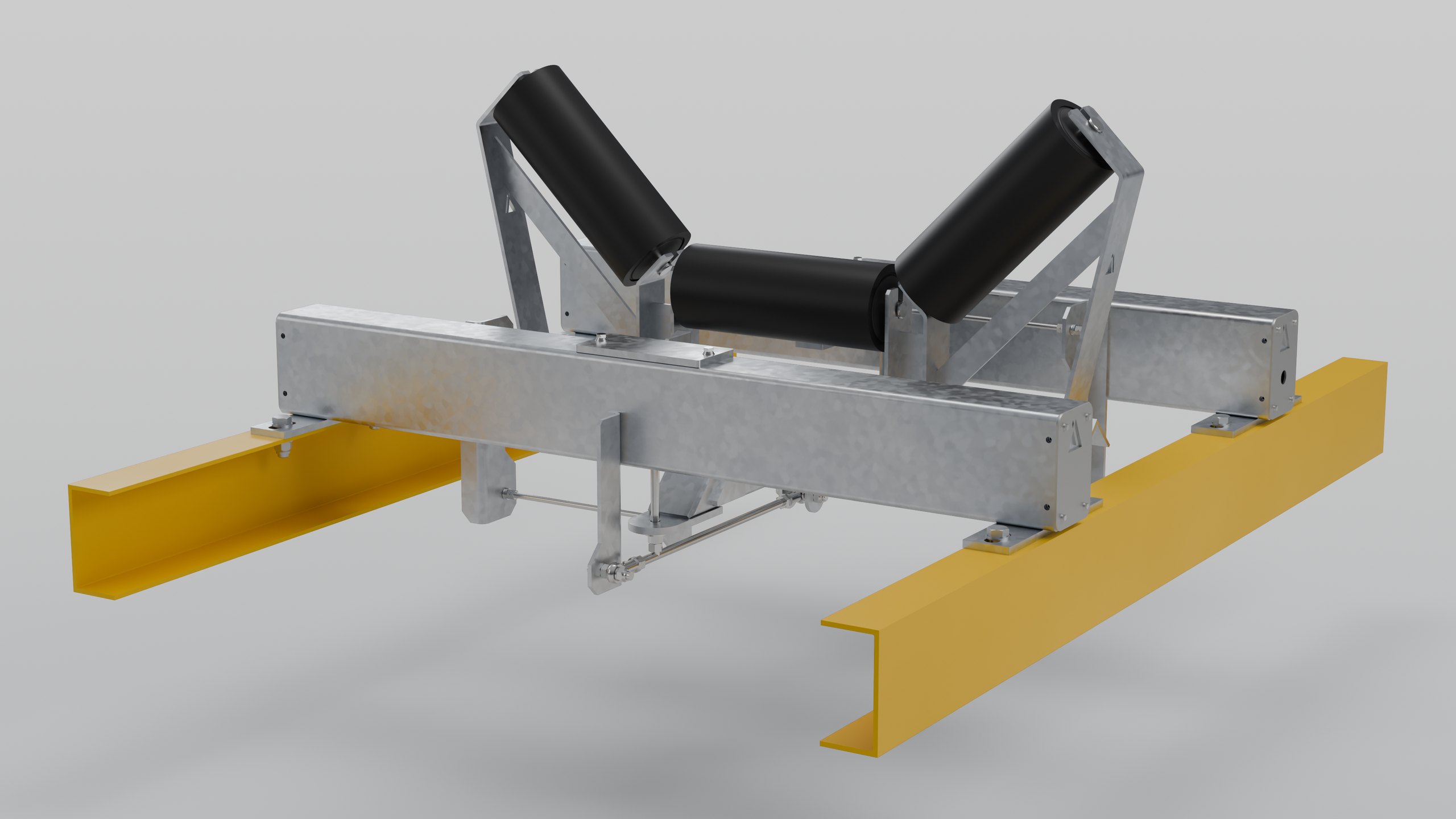

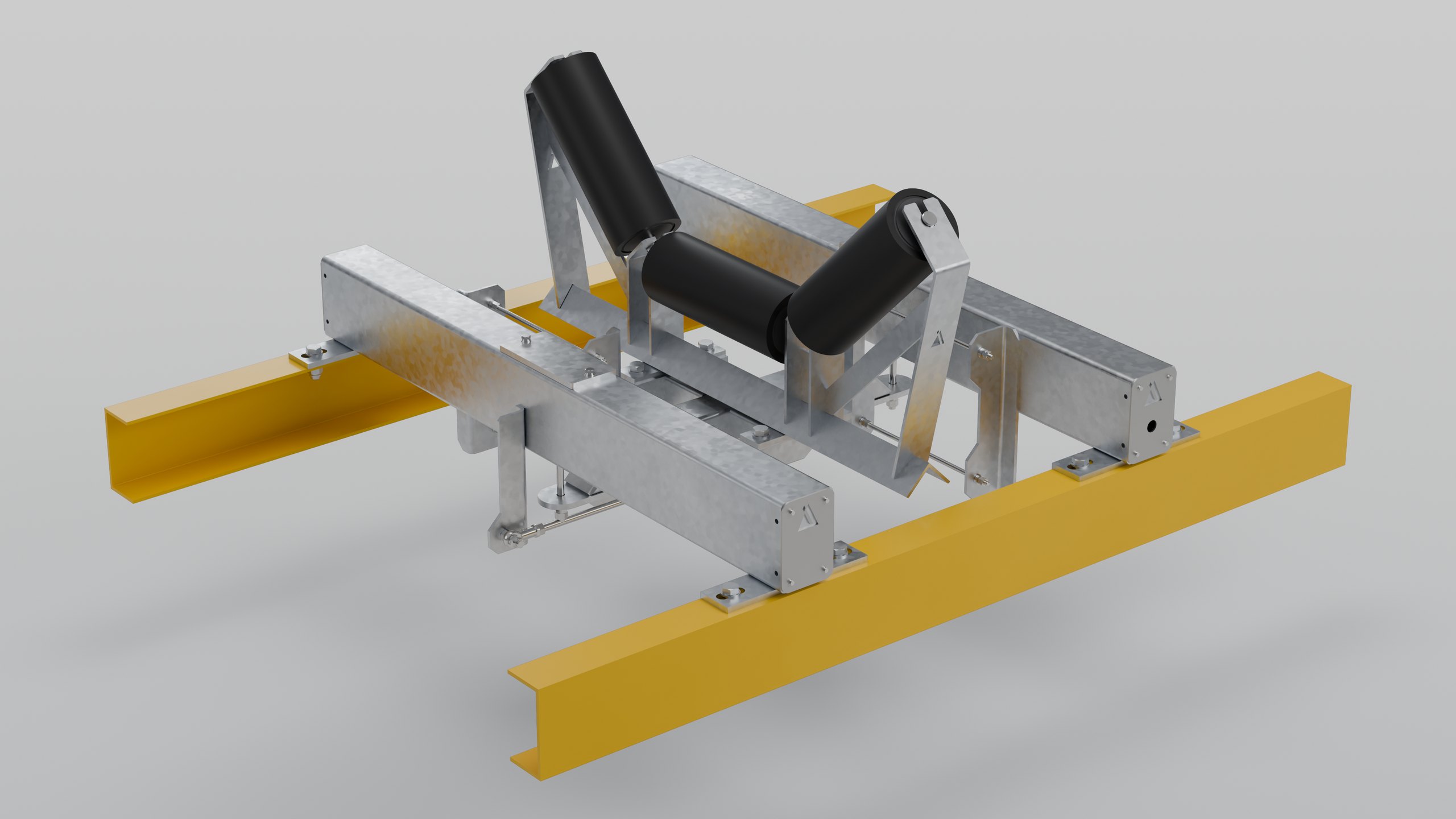

The single weigh idler frame on the scale, bolted between the conveyor stringers.
3. Off-scale idlers

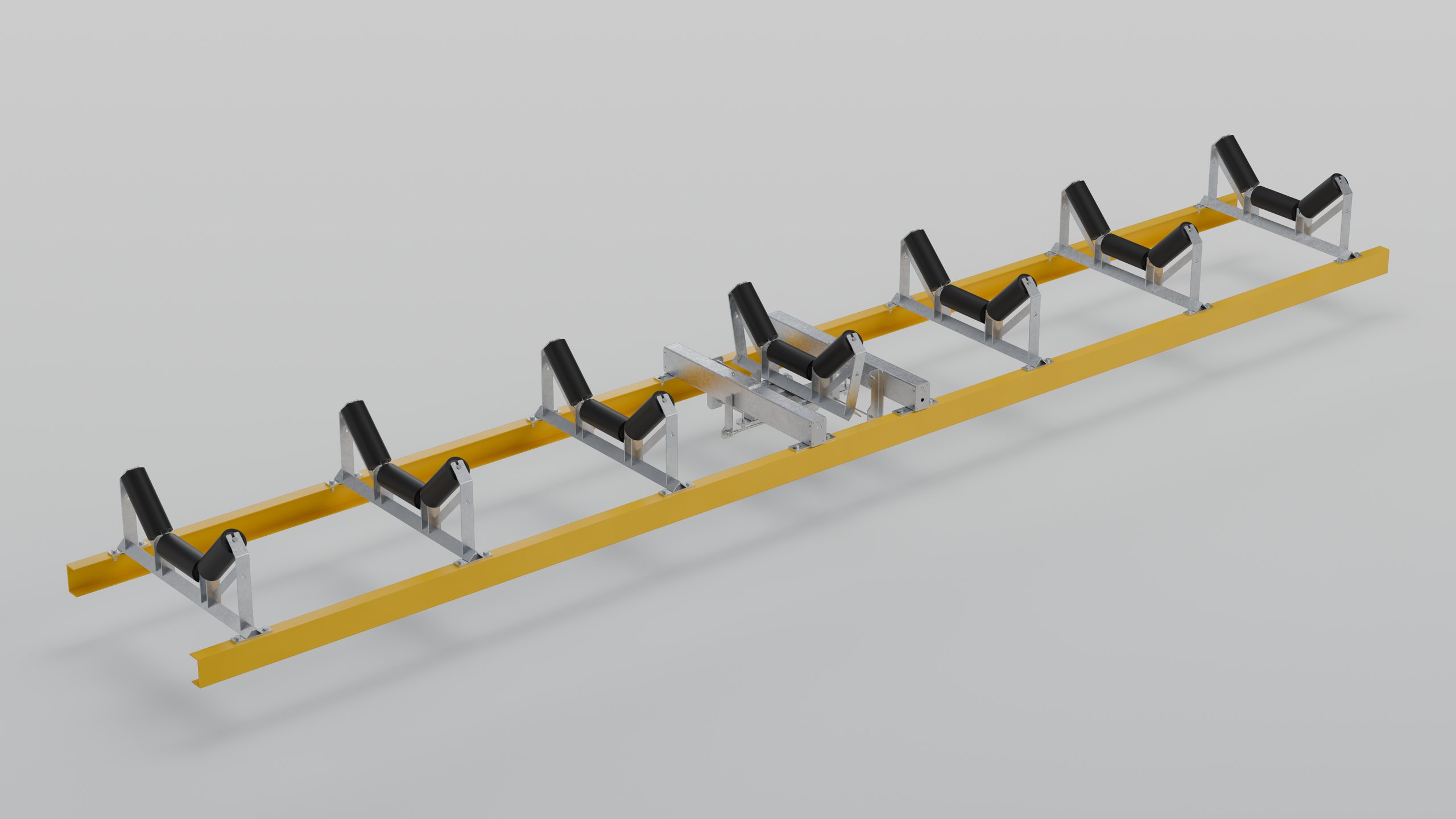

Standard idler frames either side of the scale, so the belt runs true through the weigh area.
4. Belt fitted

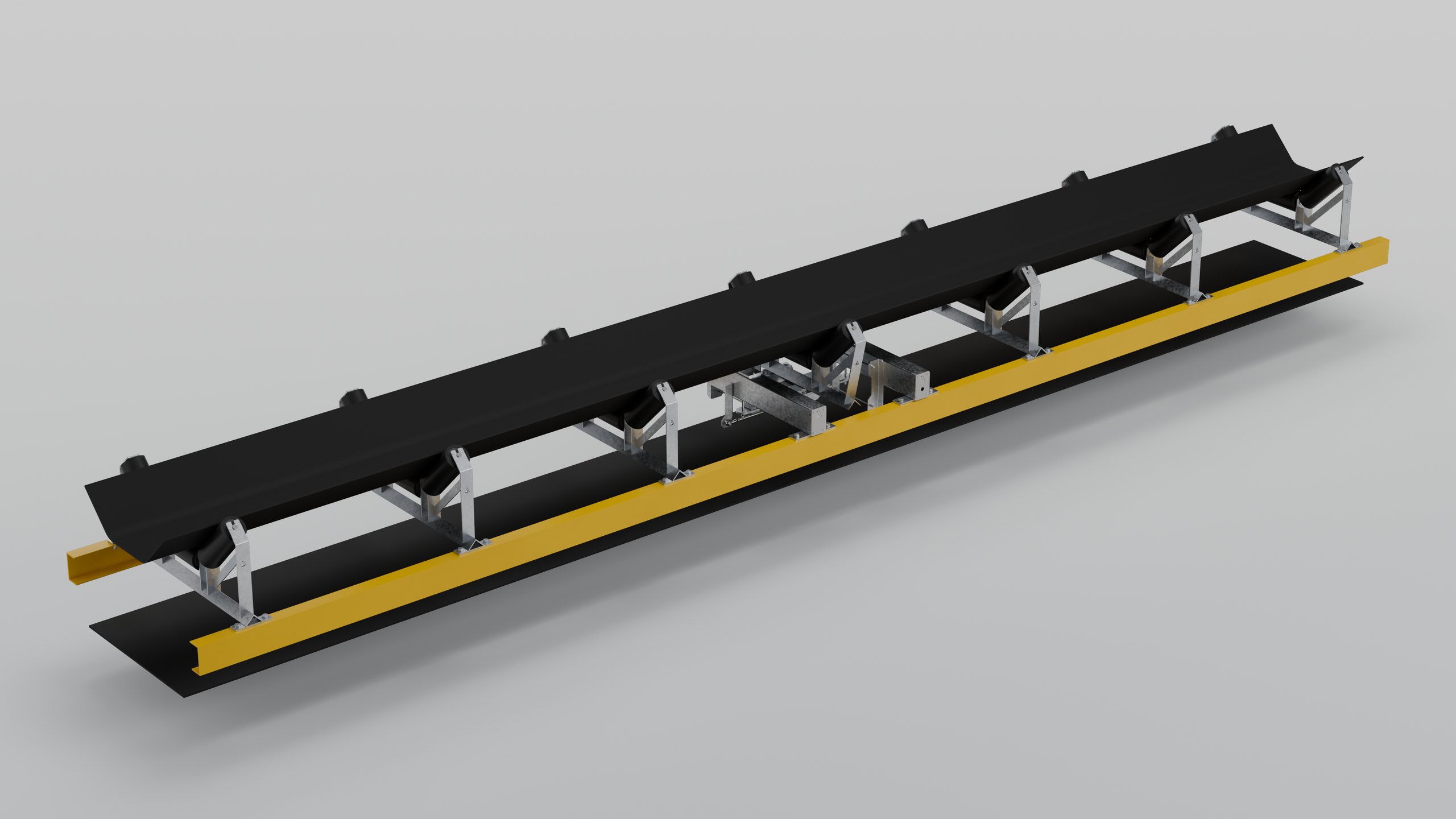

Carry and return belt in place: the conveyor as it runs empty. Add the speed sensor and integrator and it is weighing.
Centrally floating, two load cells, one weigh idler
- Two stainless S-type load cells (OIML R60 C3, IP67) under a centrally floating weigh frame
- One weigh idler frame
- Hot-dip galvanised mild steel, or stainless steel when needed
- Stored-in-place calibration weights available, quoted separately
- Belt widths 750 – 2,000 mm
As supplied

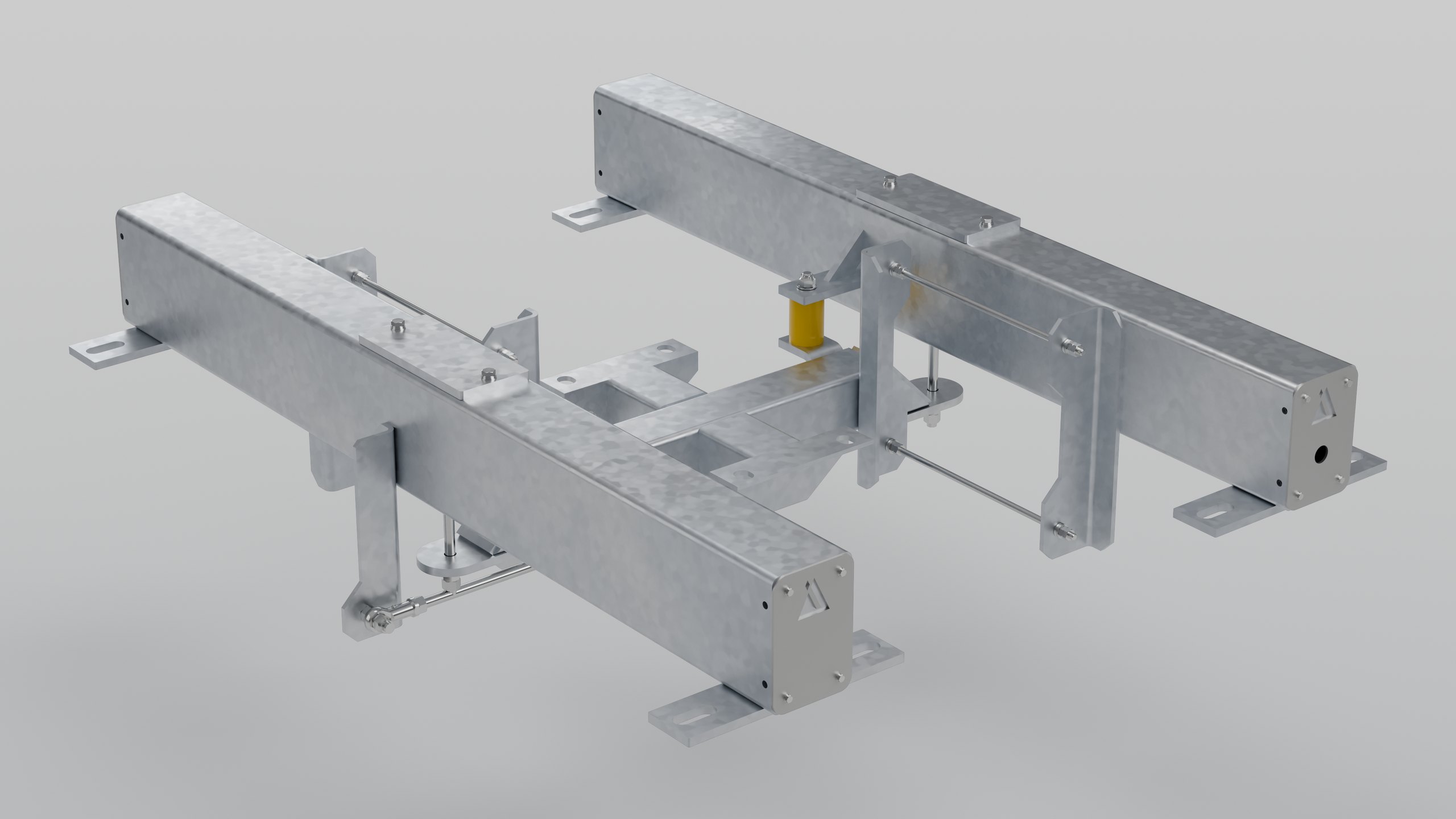

Hot-dip galvanised, with shipping tubes fitted for transport.
Stainless steel, when needed

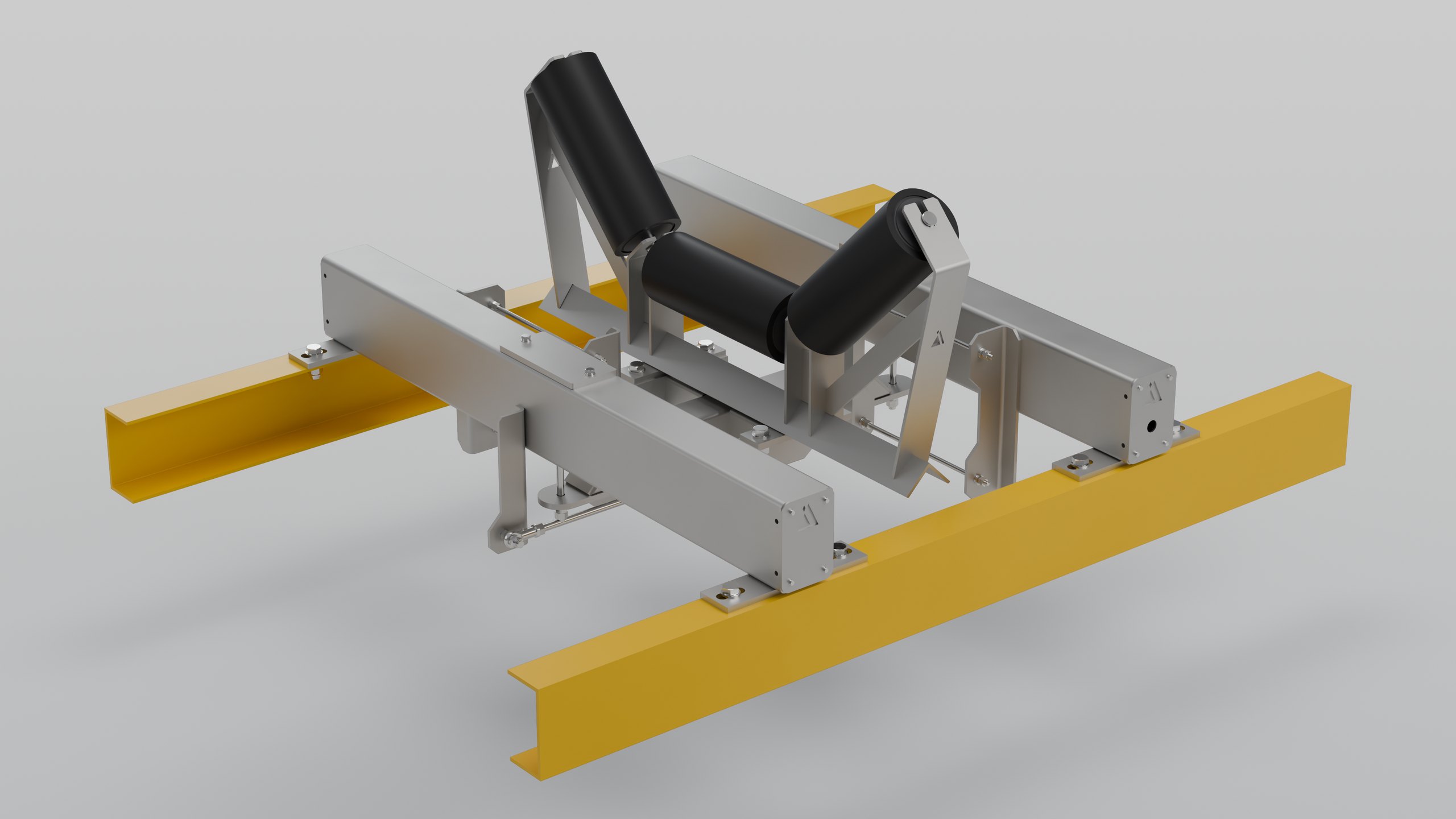

The same frame in bead-blasted stainless steel.
PBW2-1 at a glance
| Weigh frame | Centrally floating, two load cell |
|---|---|
| Load cells | Two stainless S-type, OIML R60 C3, IP67 |
| No. of weigh idlers | One |
| Belt width | 750 – 2,000 mm |
| Idler spacing | 500 – 1,500 mm |
| Accuracy | ±0.50% of actual weight at belt speeds up to 1.5 m/s* |
| Max. rated belt speed | 6.0 m/s |
| Construction | Hot-dip galvanised mild steel, or bead-blasted stainless steel when needed |
| Finish | Galvanised, or bead blasted (stainless) |
| Calibration | Stored-in-place calibration weights available (plate weight or billet weight options), quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
PBW4 series
Need higher accuracy? Four load cells under a fully floating frame, one to four weigh idlers, down to ±0.125% of actual weight*.
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
