Products / Belt weighers / PBW2-2
PBW2-2Precision belt weigher · two load cell, two idler
Two weigh idlers on a centrally floating, two load cell frame: a longer weigh span that holds ±0.50% of actual weight at belt speeds up to 3.0 m/s*, twice the speed of the PBW2-1 at the same class. Rated to 6.0 m/s, for belts from 750 to 2,000 mm. Australian designed and made.
Or call 1300 101 666
Shown: a PBW2-2 on a running belt (3D render from our CAD).
of actual weight, at belt speeds up to 3.0 m/s*
The PBW2-2 weigh frame

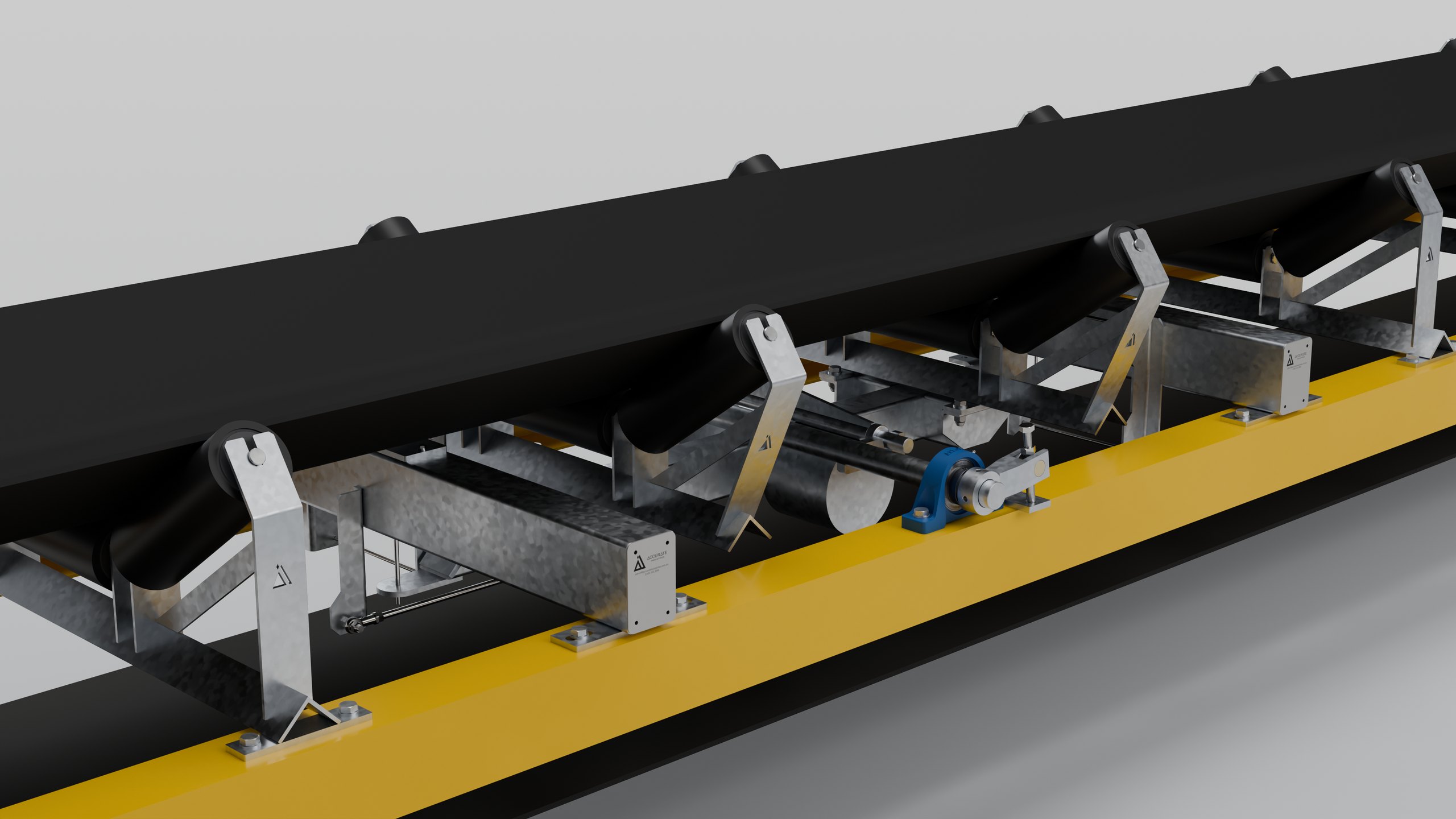

A centrally floating weigh frame on two stainless S-type load cells, carrying two weigh idlers. The longer weigh span holds ±0.50% of actual weight at twice the belt speed of the PBW2-1. Shown in hot-dip galvanised mild steel in the conveyor; stainless steel when needed.
From bare frame to running conveyor
Every part of a PBW2-2 installation, in the order it goes together. Accurate Industries supplies the lot: the weigh frame, weigh idlers, speed sensor and off-scale idlers, plus the integrator and calibration.

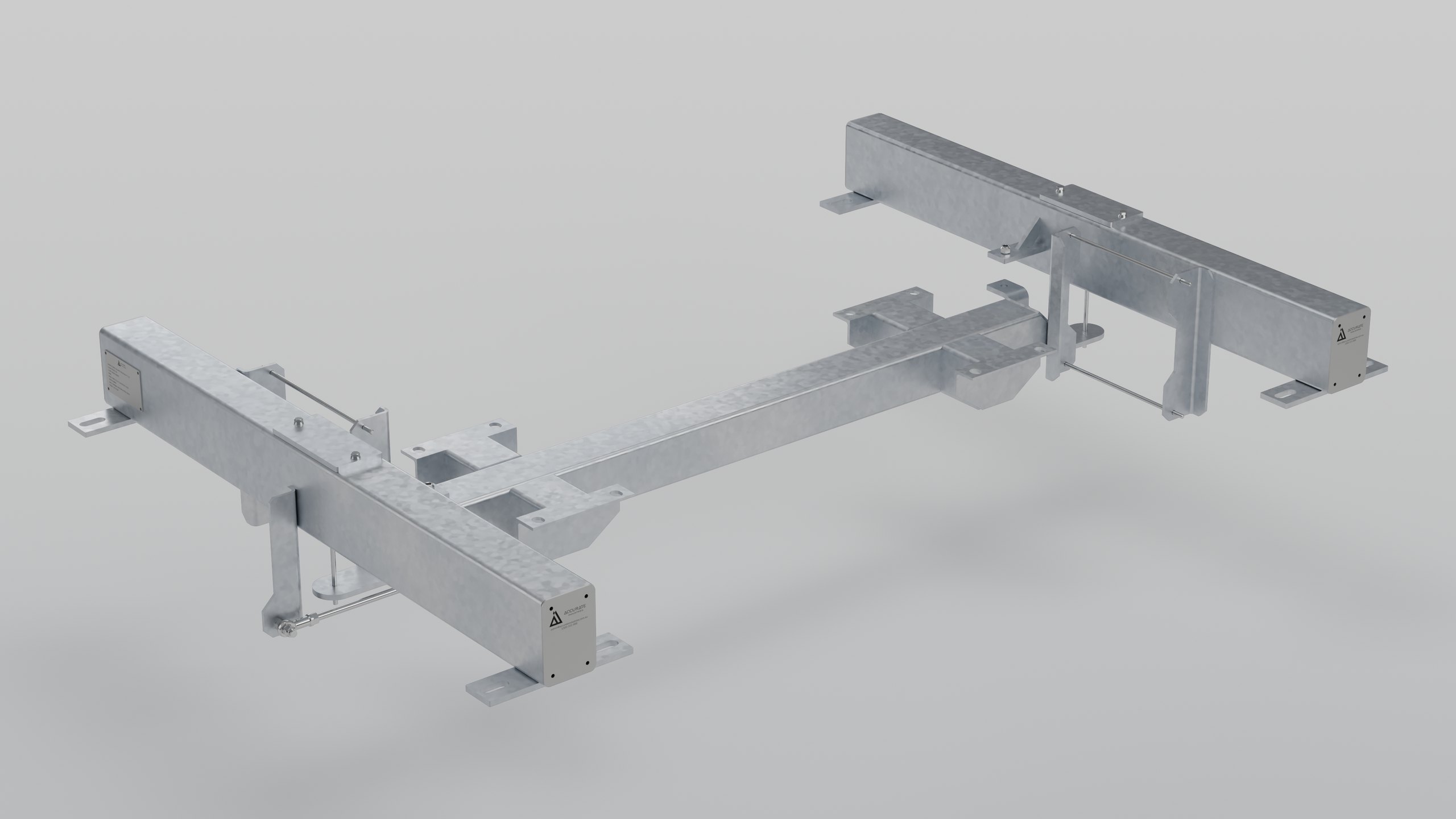

1. The weigh frame
The galvanised, centrally floating weigh frame on its two S-type load cells.

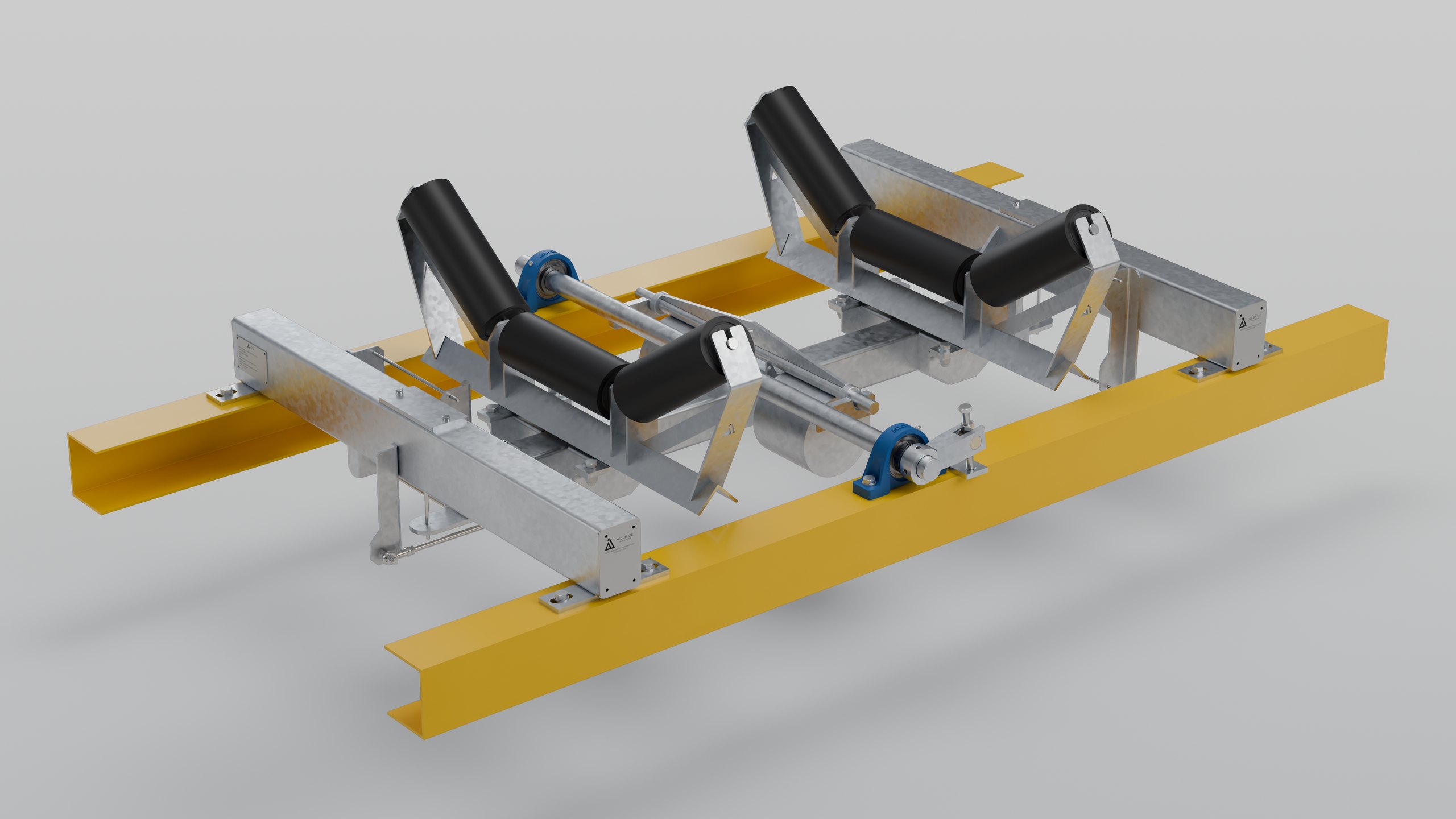

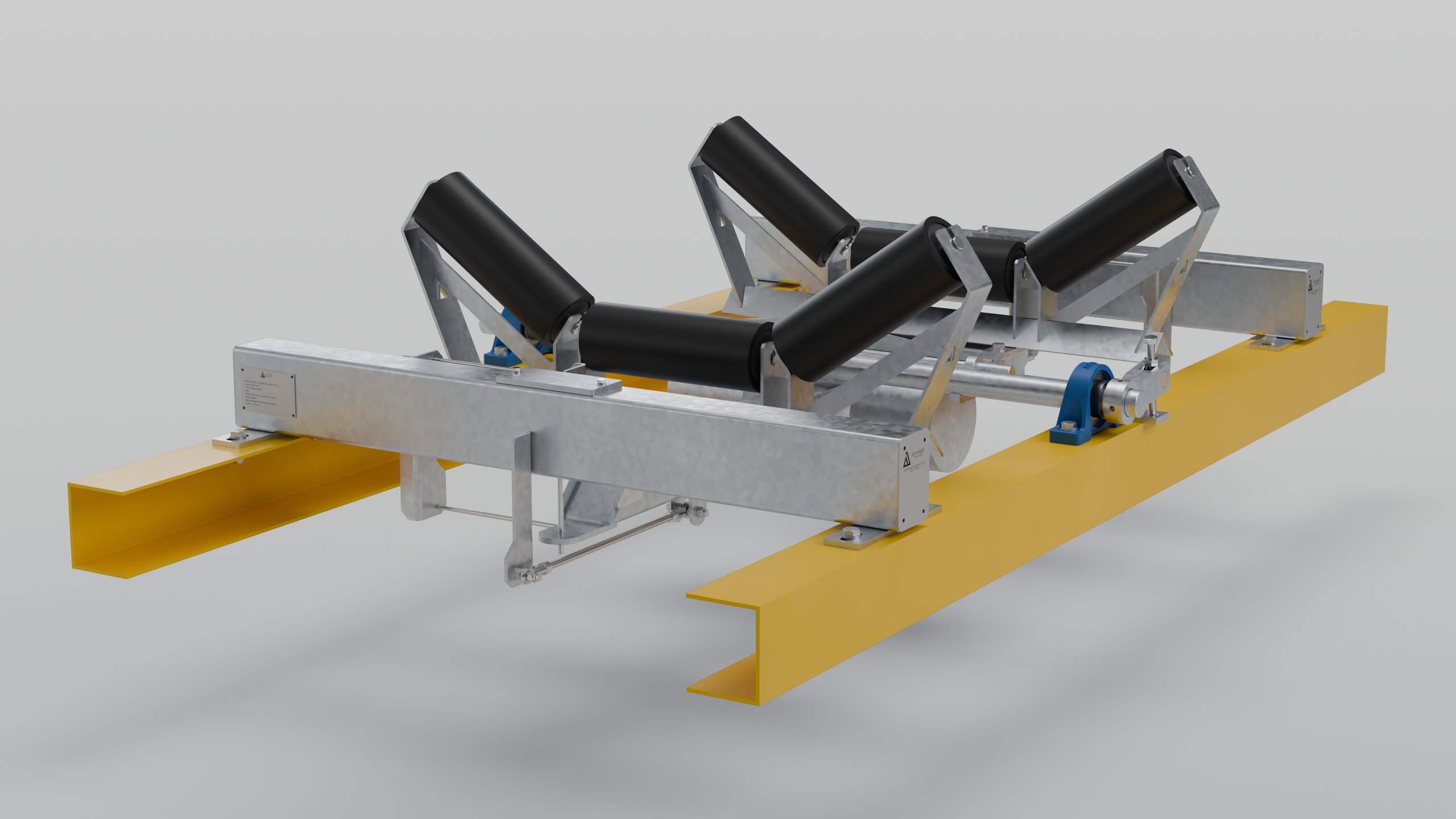

2. Weigh idlers, on the stringers
Two weigh idler frames on the scale, bolted between the conveyor stringers.

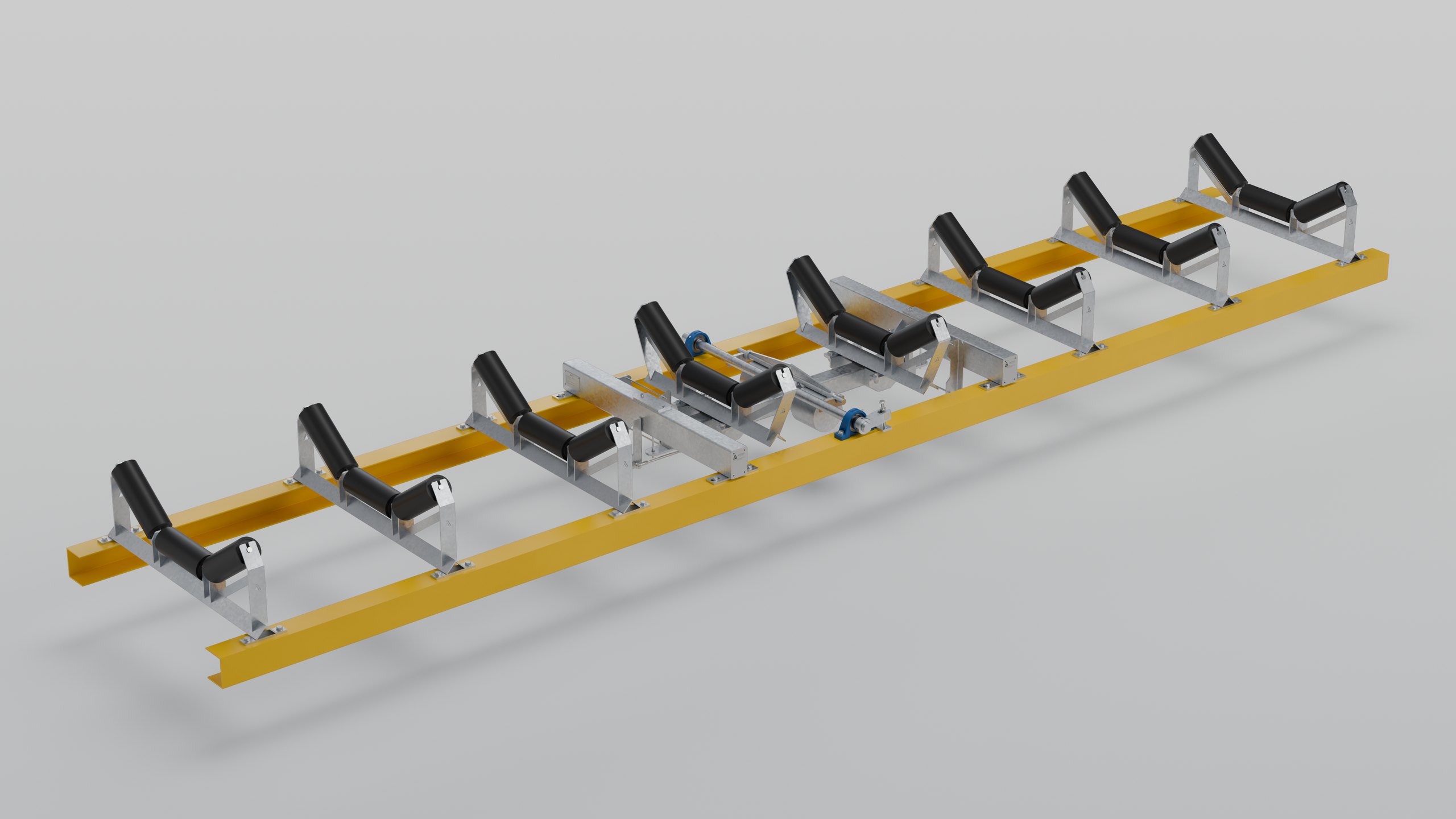

3. Off-scale idlers
Standard idler frames either side of the scale, so the belt runs true through the weigh area.

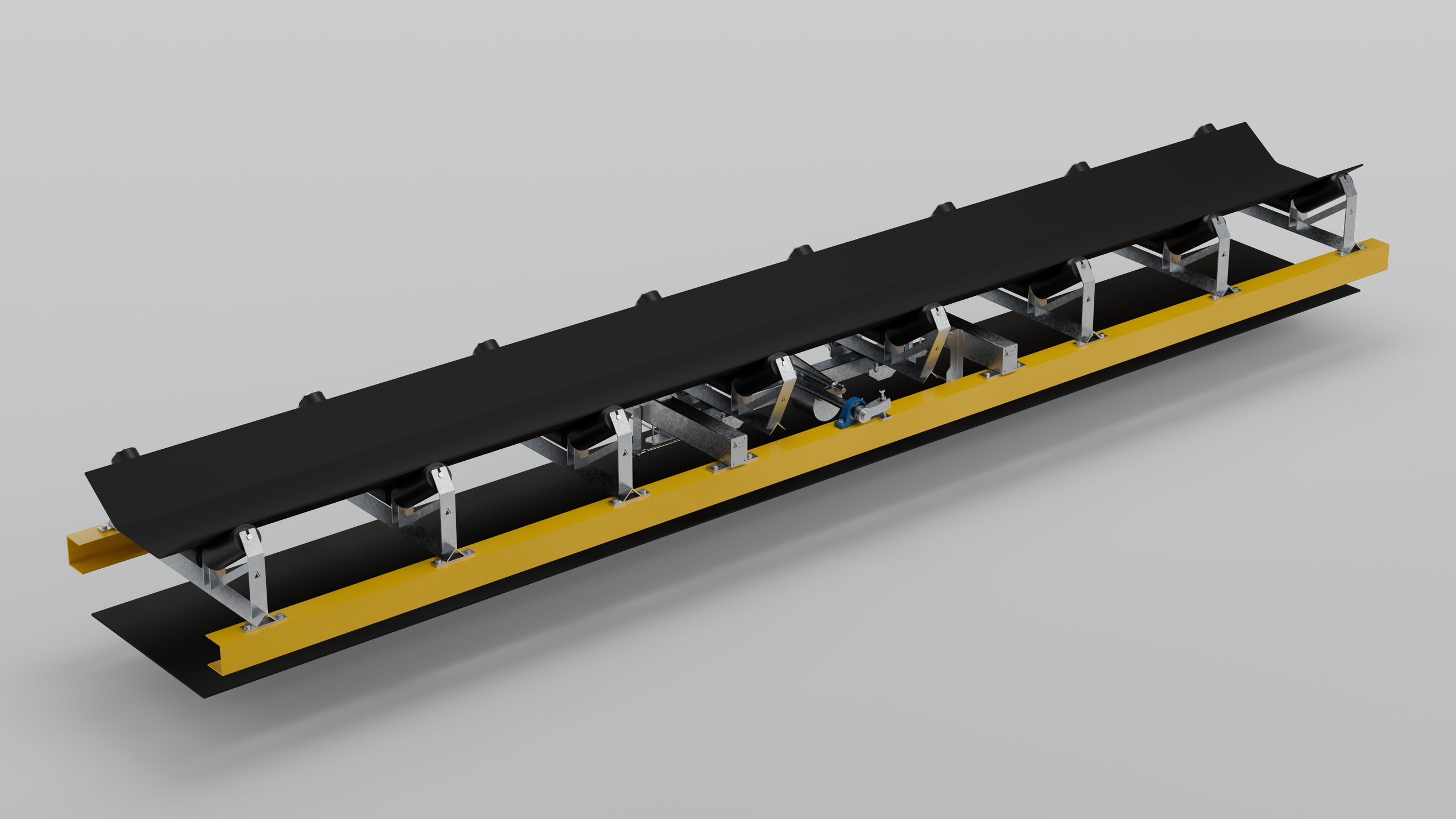

4. Belt fitted
Carry and return belt in place: the conveyor as it runs empty. Add the speed sensor and integrator and it is weighing.
Centrally floating, two load cells, two weigh idlers
- Two stainless S-type load cells (OIML R60 C3, IP67) under a centrally floating weigh frame
- Two weigh idler frames for a longer weigh span
- Hot-dip galvanised mild steel, or stainless steel when needed
- Stored-in-place calibration weights available, quoted separately
- Belt widths 750 – 2,000 mm

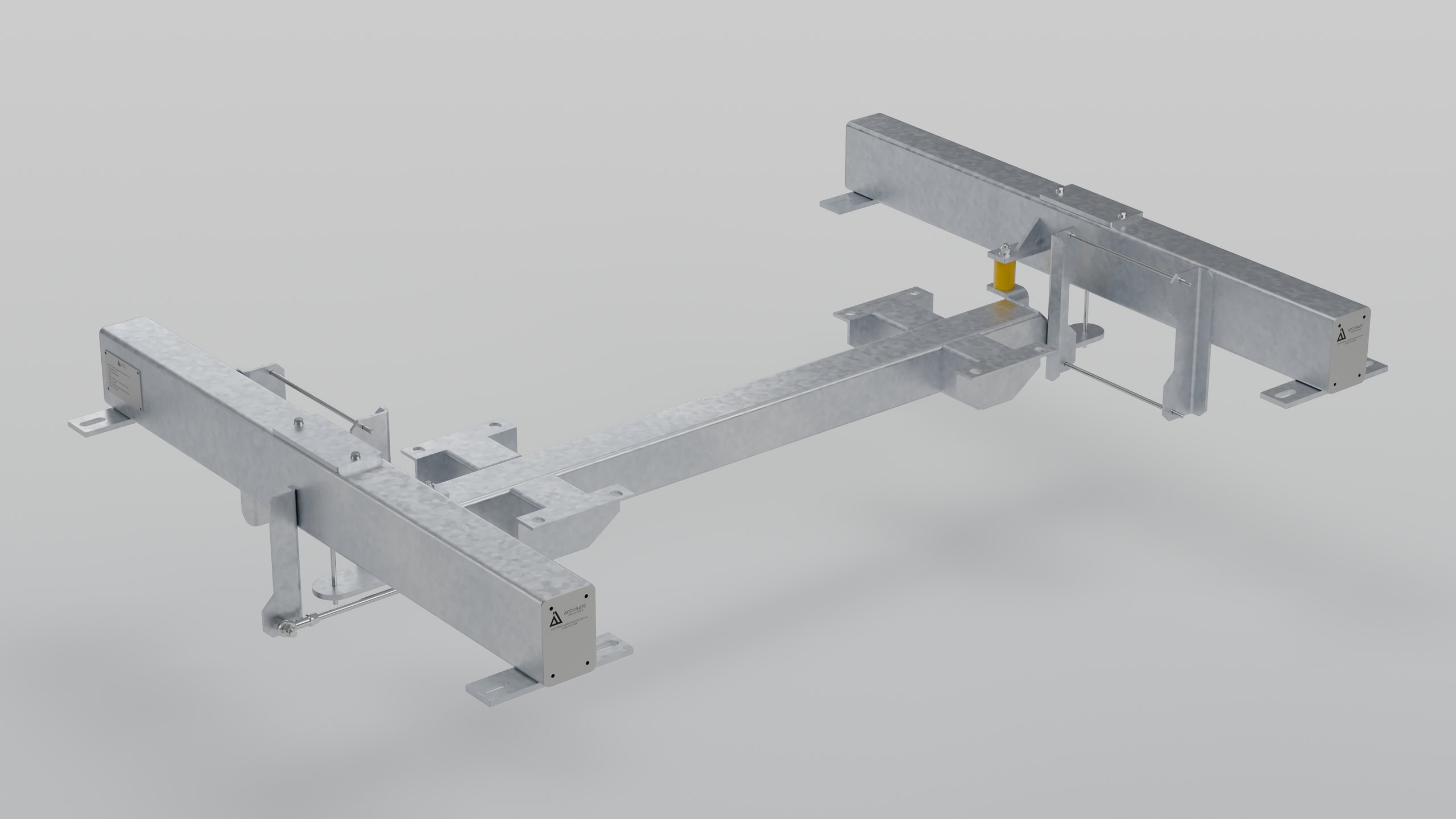

As supplied
Hot-dip galvanised, with shipping tubes fitted for transport.

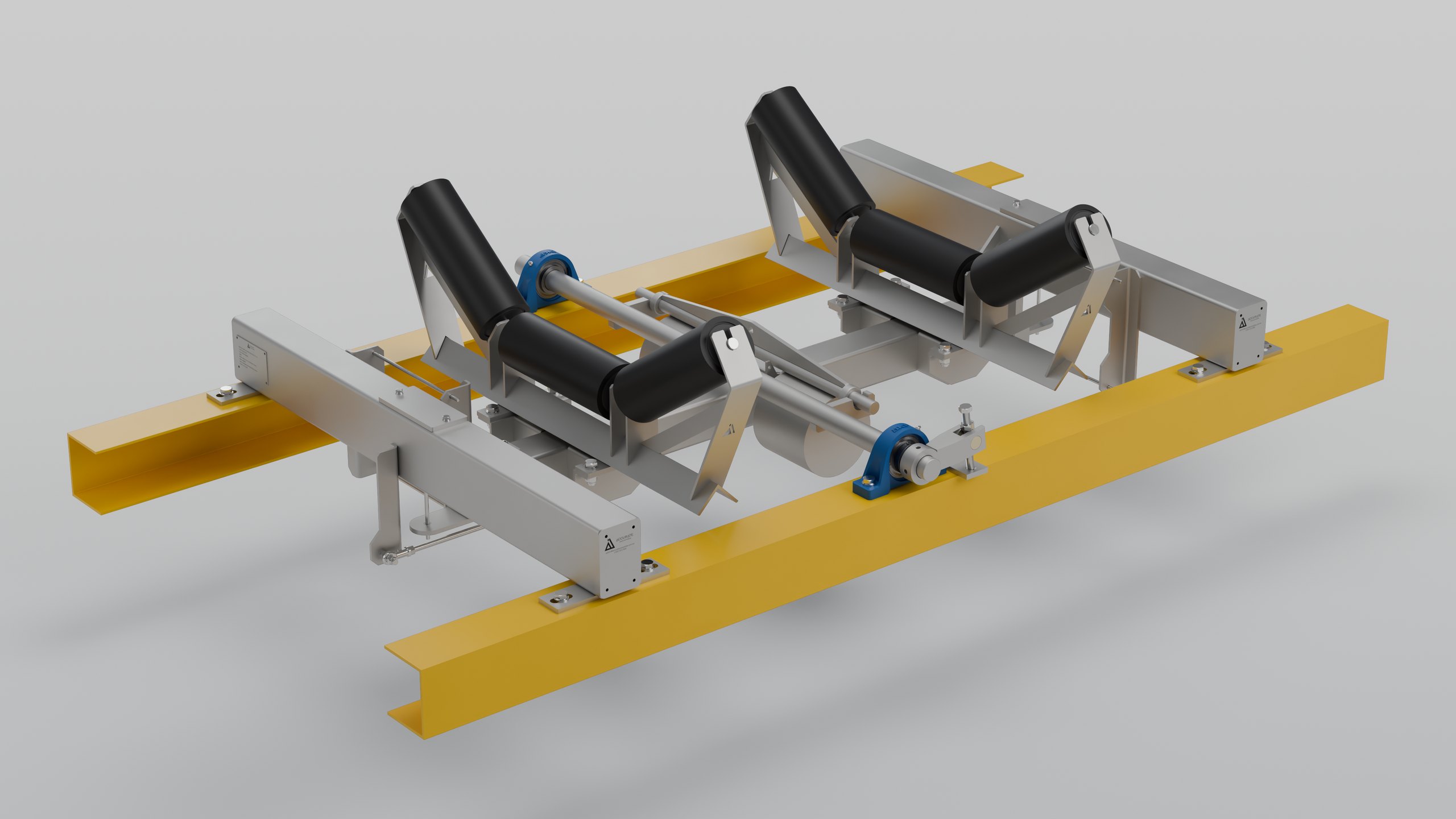

Stainless steel, when needed
The same frame in bead-blasted stainless steel.
PBW2-2 at a glance
| Weigh frame | Centrally floating, two load cell |
|---|---|
| Load cells | Two stainless S-type, OIML R60 C3, IP67 |
| No. of weigh idlers | Two |
| Belt width | 750 – 2,000 mm |
| Idler spacing | 500 – 1,500 mm |
| Accuracy | ±0.50% of actual weight at belt speeds up to 3.0 m/s* |
| Max. rated belt speed | 6.0 m/s |
| Construction | Hot-dip galvanised mild steel, or bead-blasted stainless steel when needed |
| Finish | Galvanised, or bead blasted (stainless) |
| Calibration | Stored-in-place calibration weights available (plate weight or billet weight options), quoted separately |
| Integrator | EMC ModWeigh MP1 & MP2 or Schenck Process Intecont Tersus |
| Speed sensor | Spiral cage, USR trailing arm or drum mounted options |
* Stated accuracies are ± of actual weight and rely on correct installation and commissioning to the Accurate Industries IOM manual; actual performance varies with belt speed, material, conveyor design and site conditions.
Other frames in the family
PBW2-1
Single weigh idler · ±0.50% at belt speeds up to 1.5 m/s* · rated to 6.0 m/s
PBW4 series
Need higher accuracy? Four load cells under a fully floating frame, one to four weigh idlers, down to ±0.125% of actual weight*.
Tell us about your conveyor.
Belt width, belt speed, the material and the accuracy you need to hold. Send those and we confirm the frame, then quote the complete system: weigh frame, idlers, speed sensor, integrator, installation and calibration.
